Multibay

Multibay IP65 IK08 200W 28000lm DA2

Name: Multibay IP65 IK08 200W 28000lm DA2
SKU: 4338603

Multibay 200W 4000K 28000lm Light sharing Symmetric; Dim DALI-2; Dim programmable; IP65; IK08; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM5; Ending; 5x1mm²; Housing al; Colour bk

See product details

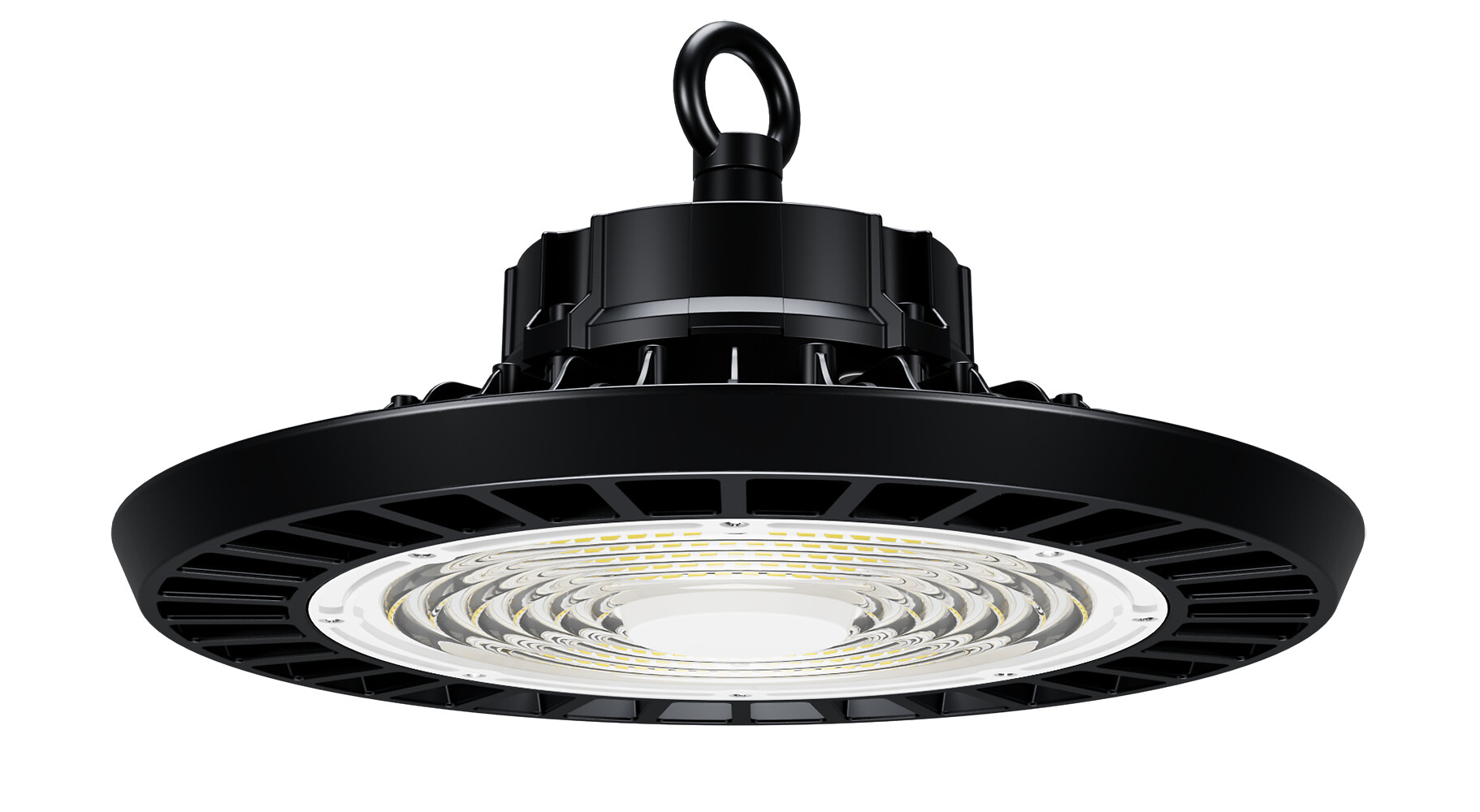

Multibay is a cost-efficient high-bay luminaire that combines versatility and excellent value for money. Efficacy can be adjusted on the luminaire. Luminaire is made of durable aluminum which is suitable for almost any location that requires high light output, such as high, open hall and storage spaces. The luminaire comes with a ready carabiner hook, which allows an easy and quick suspension installation. Surface mounting is possible with a separately ordered mounting bracket. The on/off version has three power options. The Dali version can be configured to the desired power during configuration.

Aluminium body, polycarbonate lenses, opening angle 90 degrees.
Black, RAL 9017.
Protection class I.
Not linkable 3 x 1 mm2 (on/off) ja 5 x 1 mm2 (1-10V and Dali-2), use separate junction box.
Cable length 300 mm.
Suspension or surface mounting with an installation bracket (4338604), available by separate order.
Installation height 6–10 m.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
IP65.
IK08.
Integrated LED, efficacy can be adjusted on the luminaire:
On/off: 110 W / 16 500 lm; 150 W / 22 000 lm; 200 W / 28 000 lm.
Dali: 200 W / 28 000 lm.
MacAdam 5 SDCM.
On/off and Dali.
Ambient temperature range -30 … 45 °C.
Rated lifetime L70 > 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Rated lifetime L90 40 000 h (Ta25°C).

Code: 4338603

Technical info

Mounting

Suitable for ceiling mounting: Yes
Suitable for wall mounting: No
Suitable for suspended mounting: Yes
Mounting method: Pendant
Suitable for auxiliary lamp: No
Degree of protection (IP): IP65
Impact strength: IK08
Ball-proof: No
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24: Yes
Emergency function monitoring system: None
Suitable for emergency lighting: No
Type of wiring: Ending
Number of poles: 5
Conductor cross section (mm²): 1 mm²
Connection type: Other
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Max. number of luminaires per miniature circuit breaker B16: 8
Max. number of luminaires per miniature circuit breaker C16: 11

Structure

Lamp type: LED not exchangeable
Light source included: Yes
Suitable for number of lamps: 1
Lamp holder: Other
Housing material: Aluminium
Housing colour: Black
Exchangeable control gear: Yes
Control gear included: Yes
Reflector: None
Energy efficiency class of light source according to EU regulation 2019/2015: C
Containing product according to 2019/2020/EU: Yes
Emergency power supply system: None
Emergency power supply integrated: No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
With protective cover: Yes

Electrotechnical data

Voltage type: AC
Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 830 mA
Nominal current (max) (mA): 830 mA
Type of control gear: LED operating device current-controlled
Protection class according to IEC 61140: I
Suitable for lamp power (min) (W): 200 W
Suitable for lamp power (max) (W): 200 W
Maximum system power (W): 200 W
Luminaire efficacy (lm/W): 140 lm/W
Luminaire efficacy (min) (lm/W): 140 lm/W
Luminaire efficacy (max) (lm/W): 140 lm/W
Total harmonic distortion: 15 THD
Power factor: 0.9

Dimming and control

With movement sensor: No
With presence indicator: No
With light sensor: No
Dimmable: Yes
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI-2: Yes
Dimming DALI: Yes
Dimming DMX: No
Dimming DSI: No
Dimming trailing edge: No
Dimming leading edge: No
Dimming potentiometer (integrated): No
Dimming LineSwitch: No
Dimming manufacturer's proprietary system: No
Dimming mains voltage modulation: No
Dimming programmable: Yes
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with push-button: No
No dimming function: No
Constant luminous flux control: No
Bluetooth operated: No

Photometric data

Light distributor: Diffuser lens/optic/panel
Light sharing: Symmetric
Beam angle: Extreme wide beam >80°
Colour consistency (McAdam ellipse): SDCM5
Effective luminous flux (lm): 28000 lm
Rated luminous flux according to IEC 62722-2- 1 (min) (lm): 28000 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm): 28000 lm
Colour of light (alphanumeric): White
Colour temperature (min) (K): 4000 K
Colour temperature (max) (K): 4000 K
Colour rendering index (CRI/Ra): 80-89
Photobiological safety according to EN 62471: RG1
Colour temperature switchable: No
Beam angle adjustable: No
Lumen setting adjustable: Continuously variable

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h): 100000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 85 %
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq): 70 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 5 %
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq): 10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C): -30 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C): 45 °C

Measurements

Width (mm): 300 mm
Height/depth (mm): 161 mm
Length (mm): 300 mm
Outer diameter (mm): 300 mm

	Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
	Multibay IP65 IK08 200W 28000lm 840	4338602	4338602	4000K	16500-28000lm	110-200W	300x300x161mm
	Multibay IP65 IK08 200W 28000lm DA2	4338603	4338603	4000K	28000lm	200W	300x300x161mm
