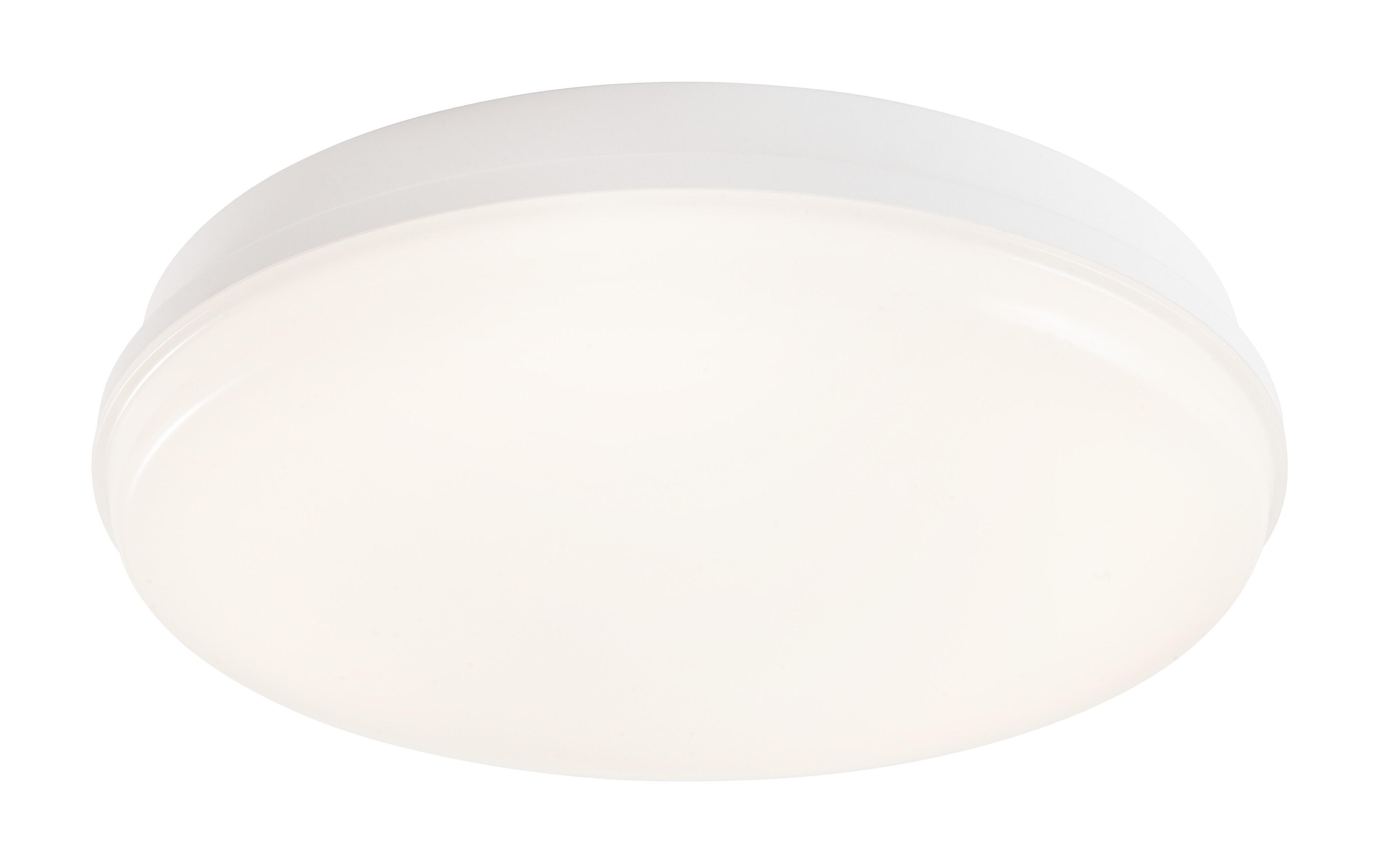

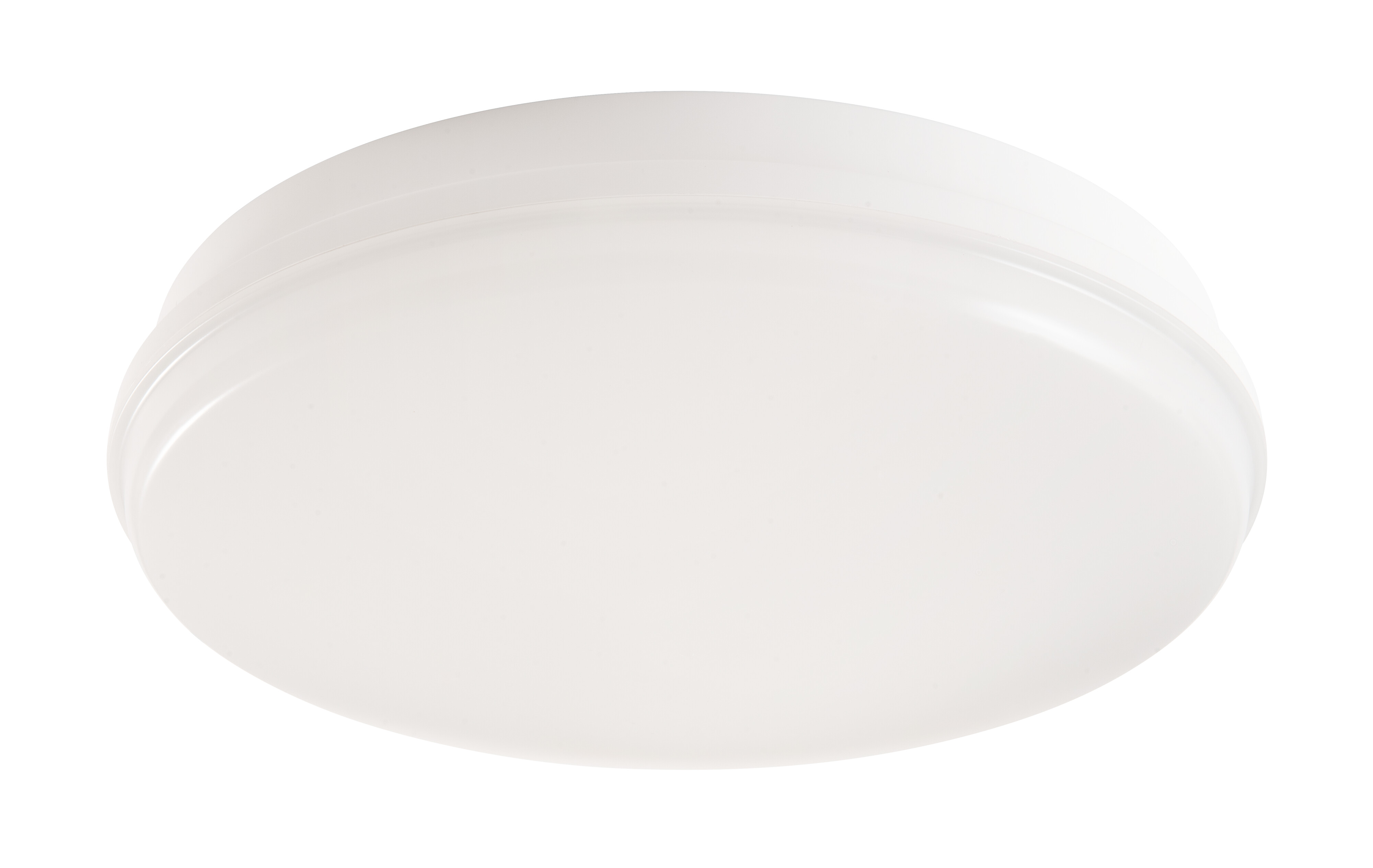

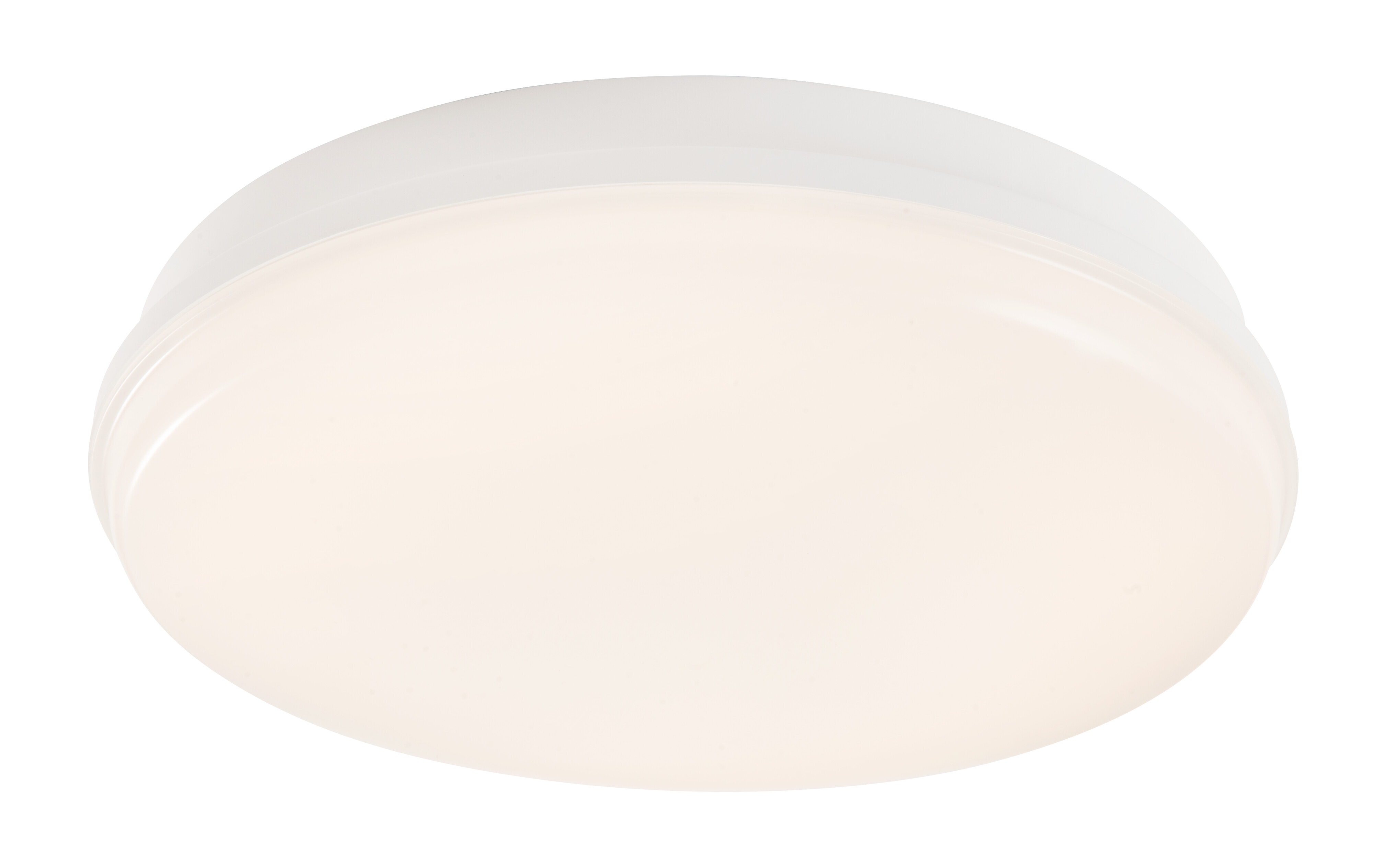

Lumi Duo 320 IP44 17W 830/840 PCO
Lumi Duo Surface mounted luminaire 10W/1000lm 17W/1500lm 3000K/4000K No dim; IP44; IK10; Protection cl. II; L70B50 50000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; C16 max. 113

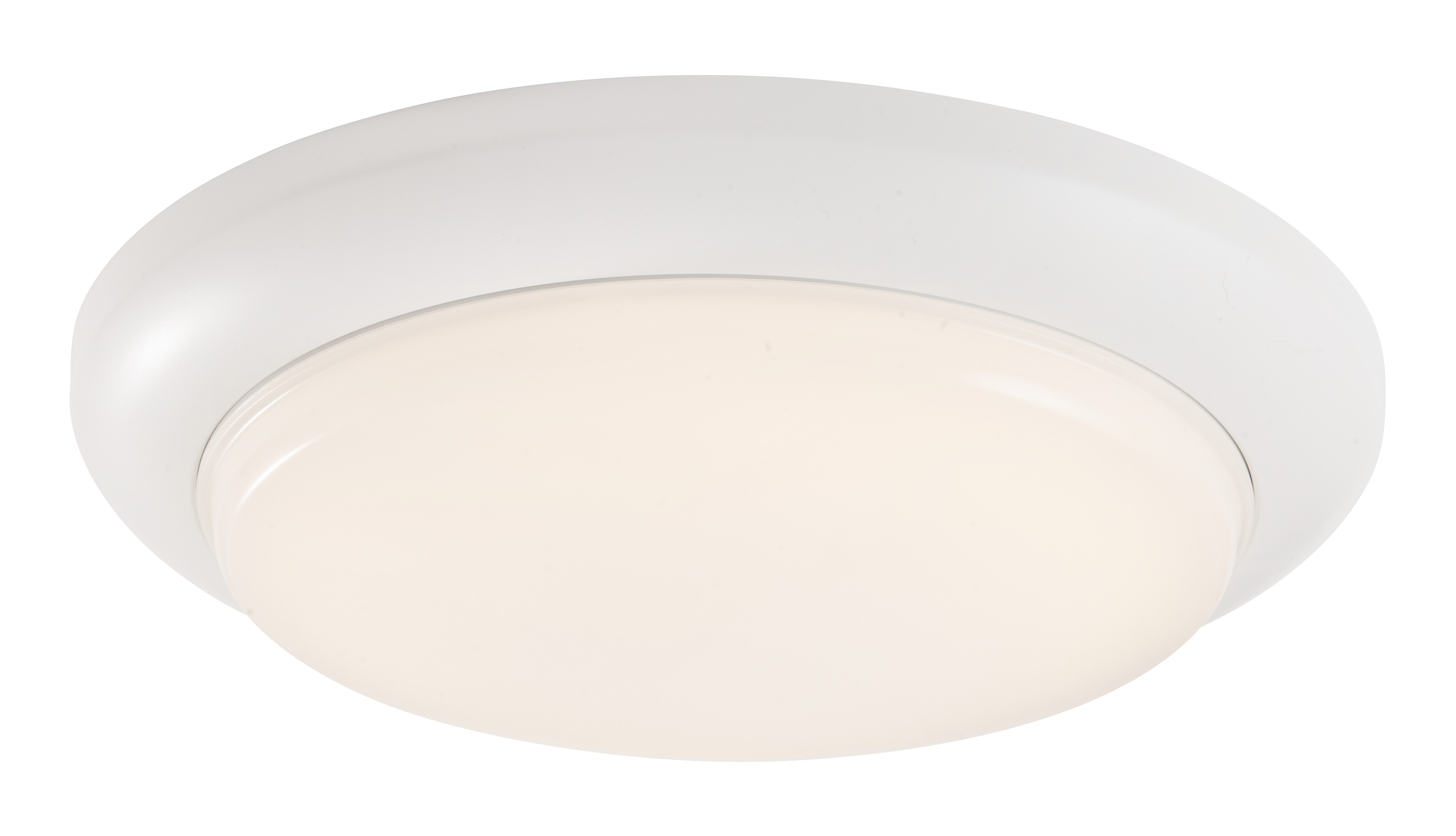

Lumi Duo is a versatile and adjustable general lighting range that allows you to select the colour temperature and power. You can select the most suitable model from several size and control options. The Lumi Duo luminaire offers excellent resistance to cold temperatures, down to -30 °C. It is suitable for wall and ceiling mounting in public indoor and outdoor spaces, and in corridors, staircases and wet spaces in residential buildings. These impact-resistant luminaires are suitable for surface and semi-recessed mounting, with an installation bracket included in the delivery. They are quick to mount, thanks to the easy diffuser installation mechanism and LEDs that are located on the luminaire edge. The luminaire, with its screwless connector, is suitable for surface wiring and linking. A white decorative frame is available as an accessory.
UV-stabilised polycarbonate housing and diffuser.
White, RAL 9003.
Protection class II.

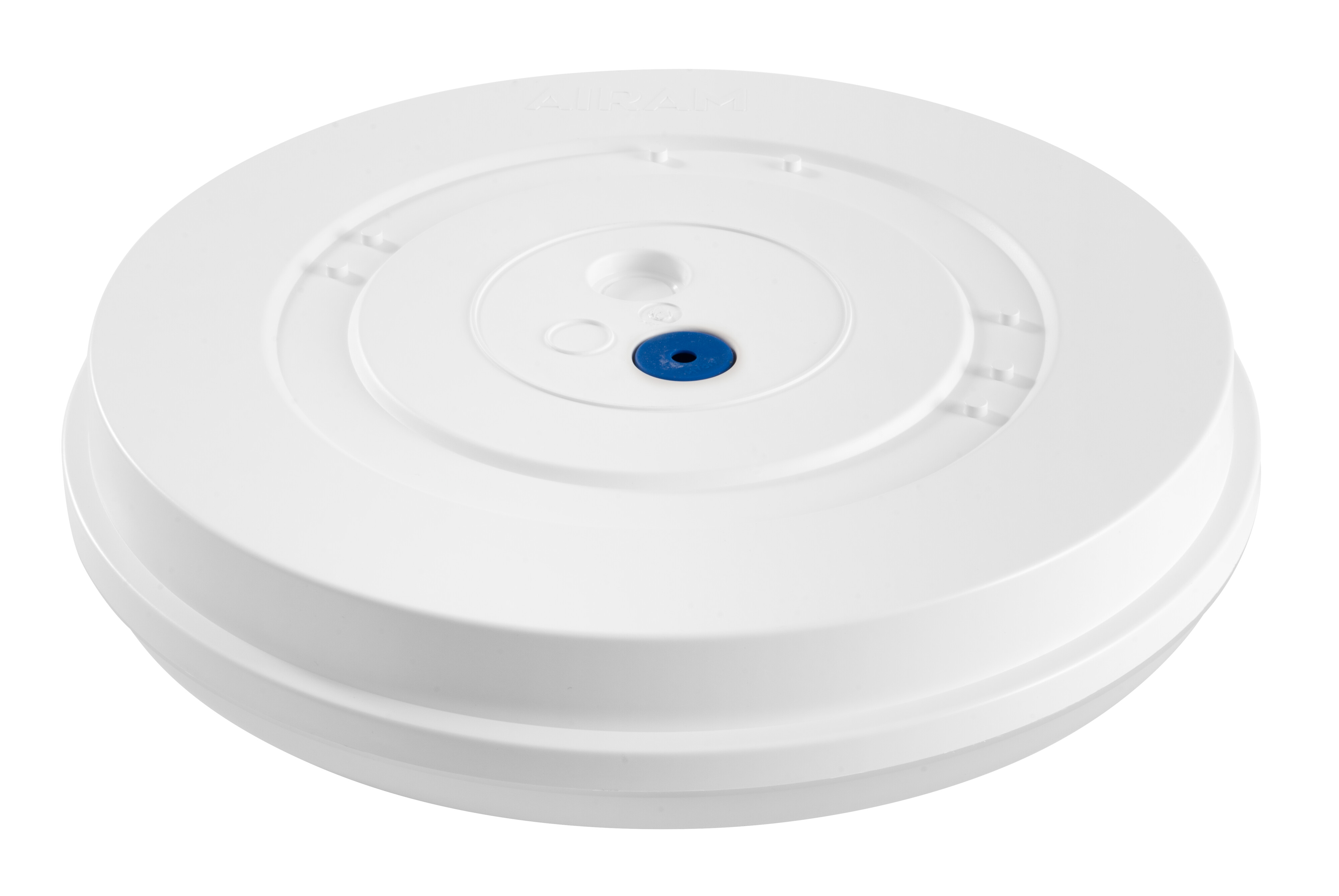

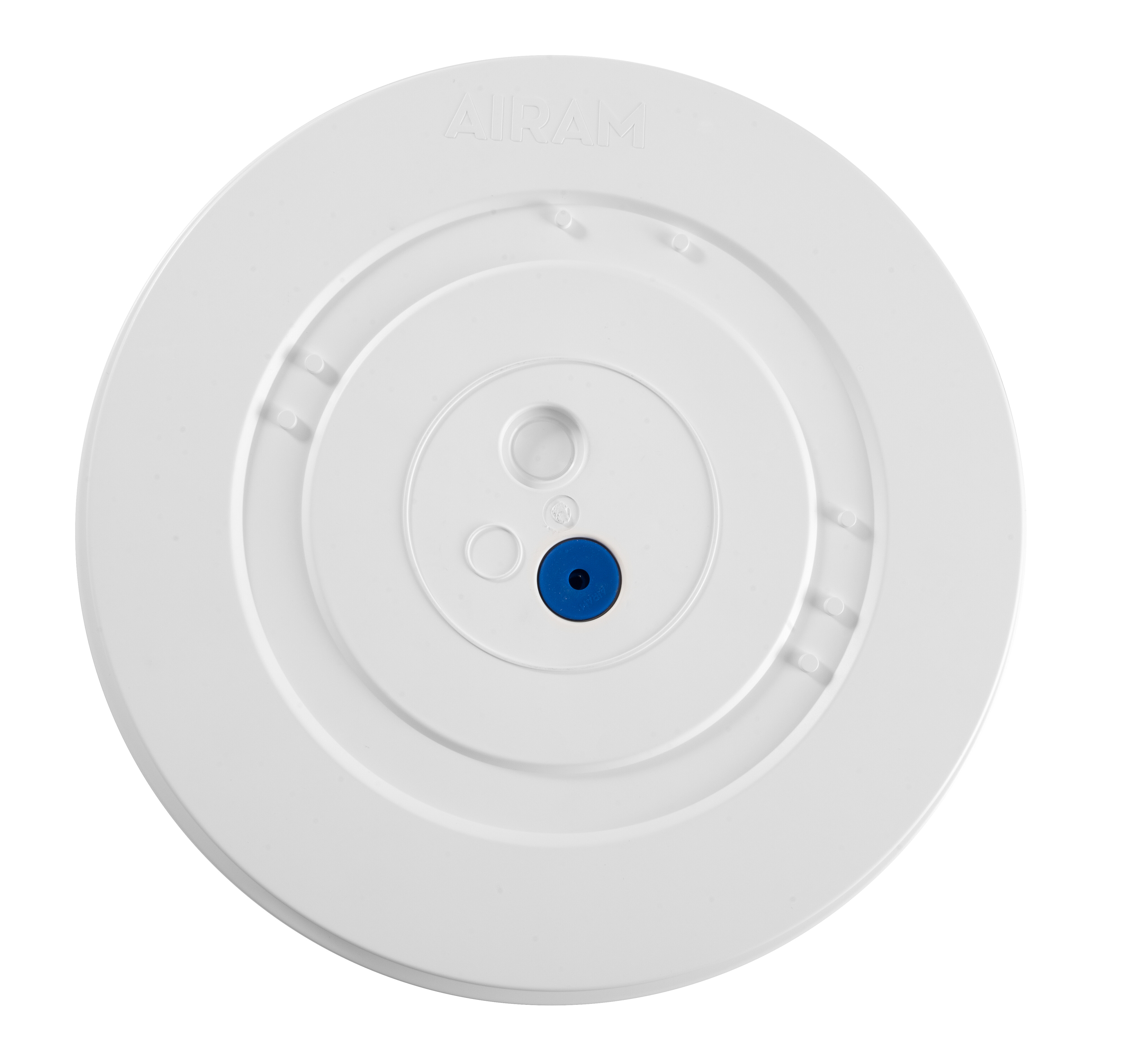

Surface or semi-recessed mounting on a wall or ceiling.
Linking: On/off and Casambi 3 x 2.5 mm2. Radar models 4 x 2.5 mm2. Dali-models 5 x 2,5 mm2.
Installation height 1.5–4 m.
Comes in three sizes: Ø 250, 320 and 400 mm.
Colour temperature 3,000/4,000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
IP44.
IK10.
Integrated LED, efficacy can be adjusted on the luminaire.
250 model: 5W 500 lm / 9W 750 lm.
320 model: 10W 1,000 lm / 17W 1,500 lm.
400 model: 17W 1,700 lm / 28W 2,500 lm.
Each size is available as on/off and Radar-models. 320- and 400-models available as Dali (with pushbutton control 230V) and Casambi.
The radar models operate on the microwave sensor principle (5.8GHz) and are suitable for master/slave (M/S) installation, allowing the use of up to 10 slave luminaires.
The ambient temperature range:
On/off -30 … 25 °C. Radar-, Dali- and Casambi models -20 ... 25 °C.
Rated lifetime L70B50 50,000 h (Ta25°C).
Power source lifespan 50,000 h.
- Code
- 4146614
Downloads
Technical info
- Electrical number (FIN)
- 4146614
- Electrical number (SWE)
- 7508341
- GTIN
- 6435200283474
- Airam code
- A1LUMB
- Code
- 4146614
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Fit for workplace acc. EN 12464-1
- No
- Luminaire efficacy (max) (lm/W)
- 100
- Light sharing
- Symmetric
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Beam angle
- Open beam
- Impact strength
- IK10
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- No dimming function
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1500
- Effective luminous flux (lm)
- 1500
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1000
- Light source included
- Yes
- Housing material
- Plastic
- Width (mm)
- 320
- Suitable for suspended mounting
- No
- Type of grid
- None
- Max. number of luminaires per miniature circuit breaker B16
- 67
- Luminaire may be covered with thermally insulating material
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No

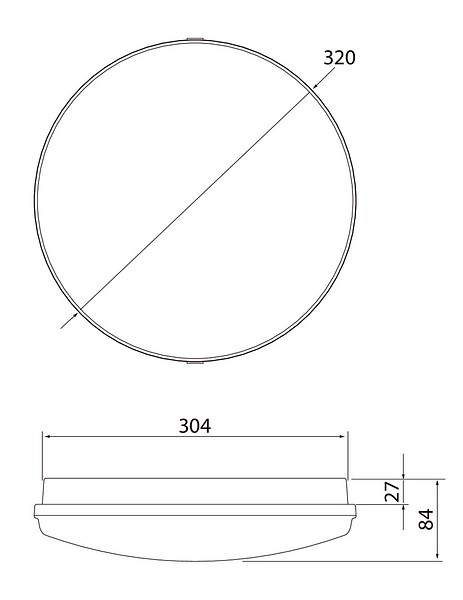

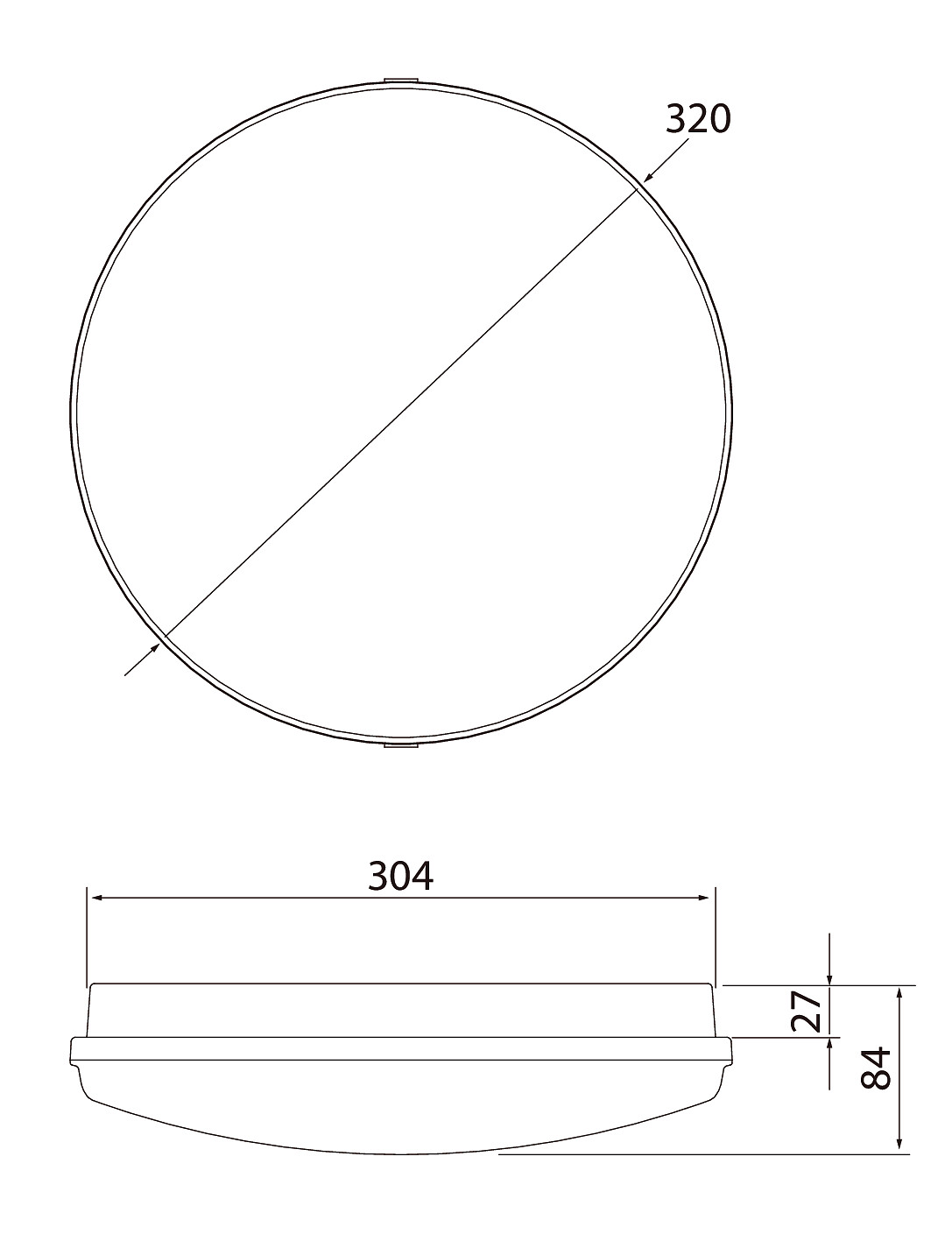

- Outer diameter (mm)
- 320
- Colour temperature switchable
- Discrete positions
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 10
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 88
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 15
- Height/depth (mm)
- 84
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 320
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- Yes
- Built-in height/depth (mm)
- 85
- Nominal current (min) (mA)
- 340
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Suitable for recessed mounting
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 113
- Rated life time L80/B50 at 25 °C
- 35000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Degree of protection (IP), front side
- IP44
- Type of wiring
- Suitable for through wiring
- With movement sensor
- No
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP44
- Power factor
- 0.9
- Dimming Zigbee
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 67
- Suitable for clamp-mounting
- No
- Unified Glare Rating (UGR)
- 22
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimming 1-10 V
- No
- Dimmable
- No
- Dimming DALI
- No
- Cover material
- Plastic, opal
- With switch
- No
- Total harmonic distortion
- 15
- Built-in diameter (mm)
- 310
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -30
- Suitable for lamp power (max) (W)
- 17
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 3000
- Luminaire efficacy (min) (lm/W)
- 88
- Suitable for light line configuration
- No
- Housing colour
- White
- Dimming DALI-2
- No
- Number of poles
- 3
- Suitable for emergency lighting
- No
- Dimming manufacturer's proprietary system
- No
- Suitable for number of lamps
- 1
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Housing surface protection
- Plastic-coated
- Light outlet
- Direct
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 570
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP44
- Maximum system power (W)
- 17
- Lumen setting adjustable
- Positions
Product versions
Lumi Duo
| Item description | Code | |
|---|---|---|
| Lumi Duo 250 IP44 9W 830/840 PCO | 4146613 |
|
| Lumi Duo 320 IP44 17W 830/840 PCO | 4146614 |
|
| Lumi Duo 400 IP44 28W 830/840 PCO | 4146615 |
Lumi Duo sensor luminaires
| Item description | Code | |
|---|---|---|
| Lumi Duo 250 IP44 9W 830/840 RA PCO | 4146616 |
|
| Lumi Duo 320 IP44 17W 830/840 RA PC | 4146617 |
|
| Lumi Duo 400 IP44 28W 830/840 RA PC | 4146618 |
Lumi Duo Dali
| Item description | Code | |
|---|---|---|
| Lumi Duo 320 IP44 17W 830/840 DA2 | A1LUMB-DALI |
|
| Lumi Duo 400 IP44 28W 830/840 DA2 | A1LUMC-DALI |
Lumi Duo Casambi
| Item description | Code | |
|---|---|---|
| Lumi Duo 320 IP44 17W 830/840 CA | A1LUMB-CA |
|
| Lumi Duo 400 IP44 28W 830/840 CA | A1LUMC-CA |
