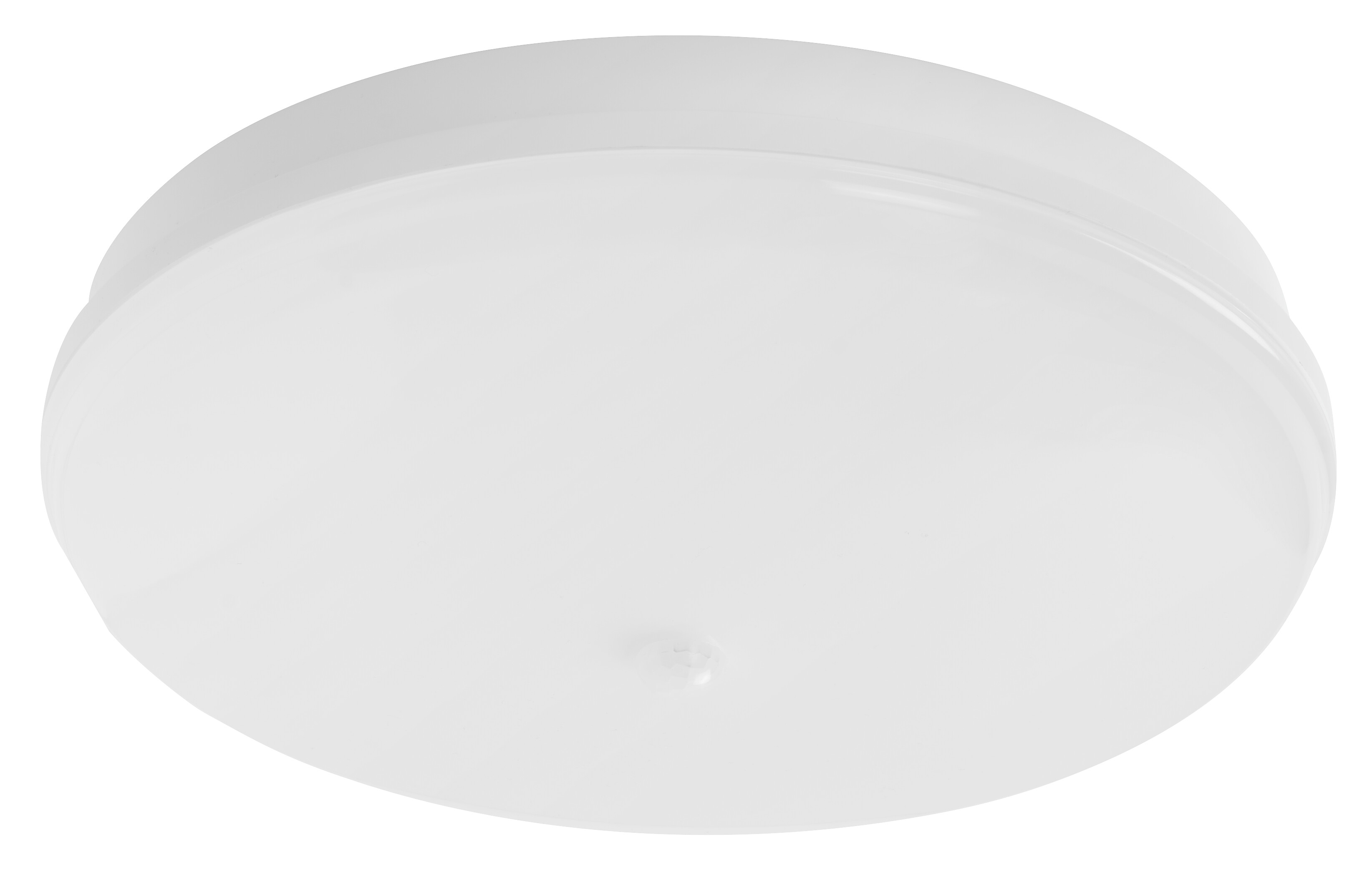

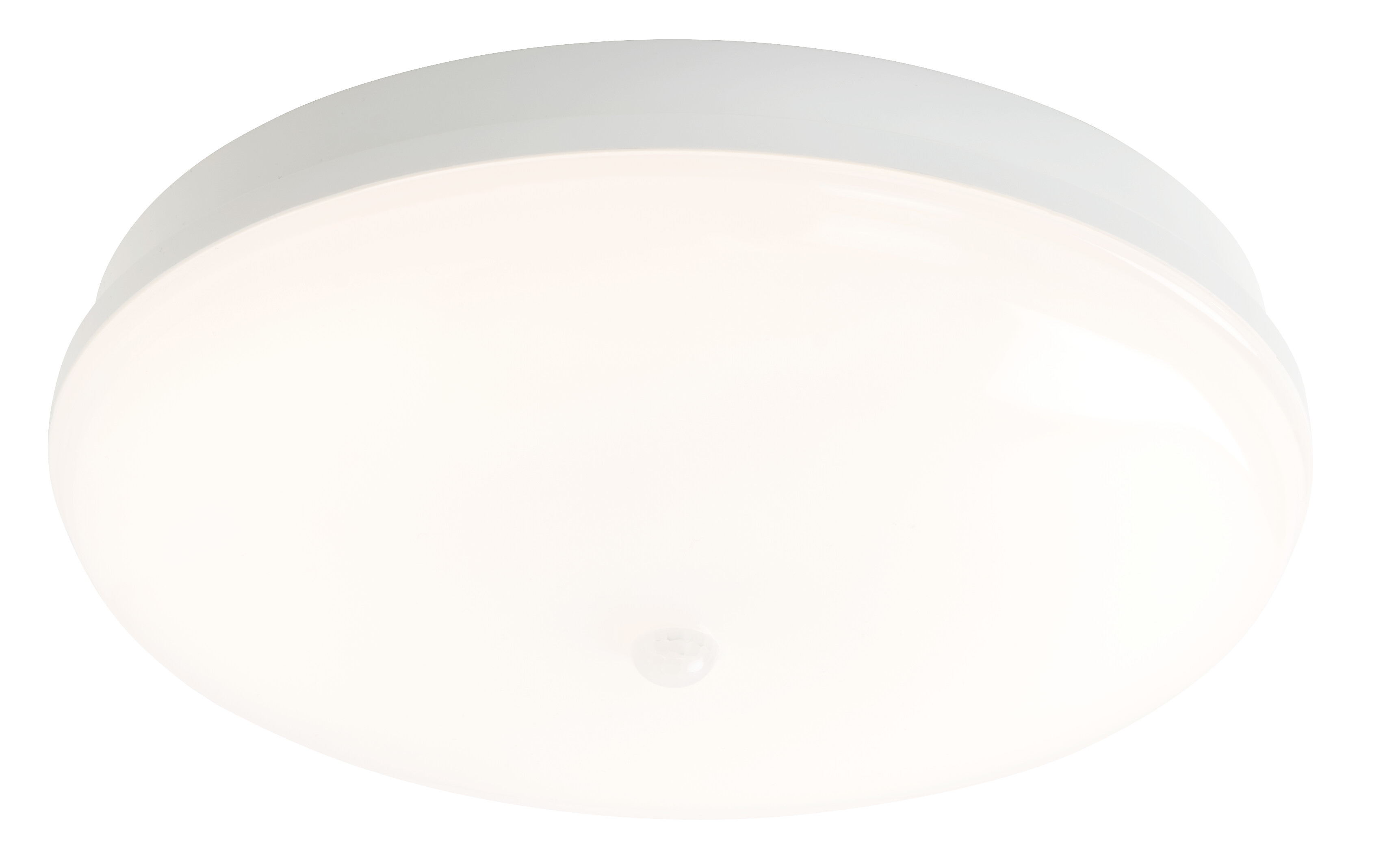

Lumi 320 IP44 12W/840 PIR MS PCO WH
Lumi Sensor luminaire 12W 4000K 1000lm PIR M-S; IP44; IK10; Protection cl. II; L70B50 35000h; LED not exchangeable; CRI>80; SDCM5; Suitable for through wiring; 4x2.5mm²; Housing Plastic; Colour wh; Cover Plastic, opal; Movement sensor; C16 max. 92

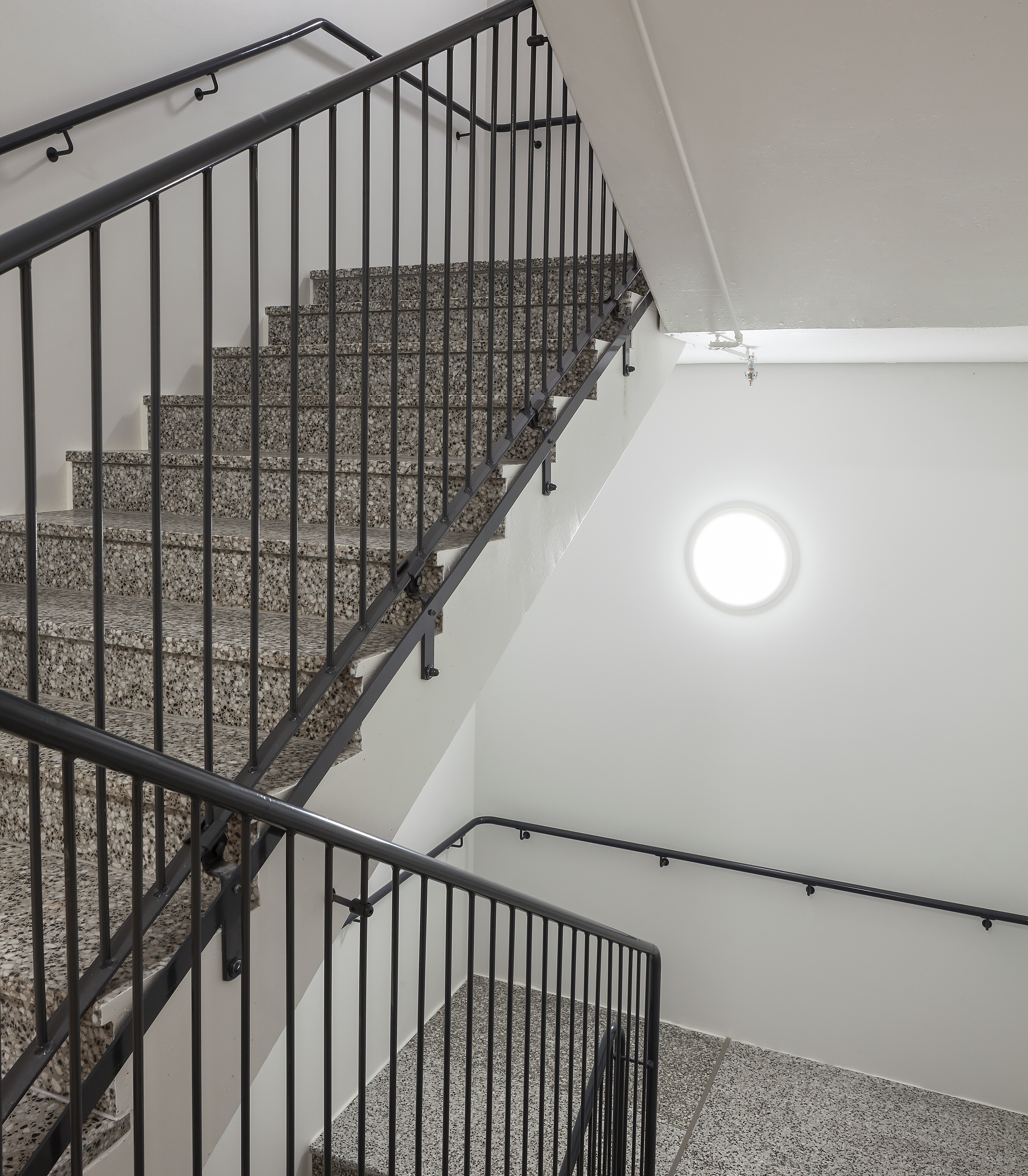

The Lumi IP44 general lighting range is suitable for indoor wall and ceiling mounting in public spaces and residential properties. It is designed for corridors, staircases and bathrooms. These impact-resistant luminaires are suitable for surface and semi-recessed mounting, with a installation bracket included in the delivery. They are quick and easy to install, thanks to the bayonet fittings and LED lamps, which are located on the luminaire edge. Lumi series includes Radar 10-100 and Pir models. The luminaire with a screwless connector is suitable for surface wiring and linking. A white decorative frame is available as an accessory.
Polycarbonate housing and diffuser.
White, RAL 9016.
Surface or semi-recessed mounting on a wall or ceiling.
Radar 10-100 3 x 2,5 mm2, Pir 4 x 2,5 mm2.
Installation height 2–6 m.

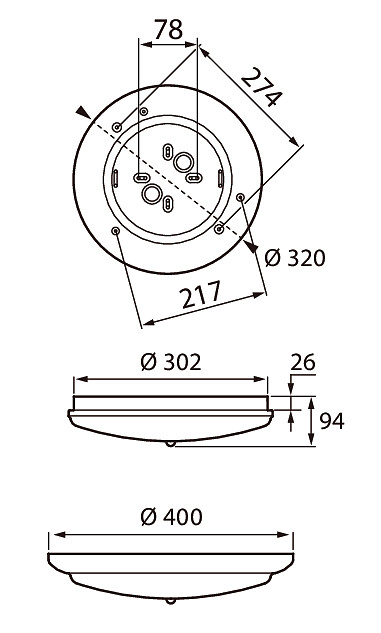

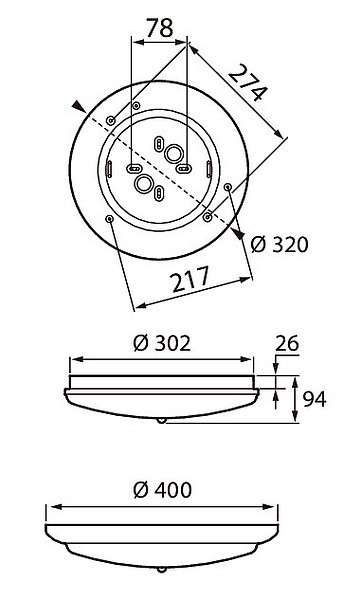

Comes in two sizes: Ø 320 and 400 mm.
Colour temperatures 3,000 K and 4,000 K.
IP44.
IK10.
Integrated LED:
320 model: 12 W / 1,000 lm.
400 model: 18 W / 1,700 lm.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 50,000 h (Ta25°C).
PIR model's rated life time L70 35 000 h (Ta25°C).
- Code
- 4297217
Downloads
Technical info
- Electrical number (FIN)
- 4297217
- Electrical number (SWE)
- 7502900
- GTIN
- 6435200219817
- Airam code
- A2LUFP
- Code
- 4297217
- Length (mm)
- 320
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 83
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 4
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Movement sensor/presence detector technology
- Passive infrared
- Dimming DMX
- No
- Built-in diameter (mm)
- 300
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- Yes
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 12
- With presence indicator
- Yes
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1000
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 70
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP44
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Built-in width (mm)
- 300
- Housing surface protection
- Plastic-coated
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 1000
- Rated life time L80/B50 at 25 °C
- 35000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK10
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 61
- Width (mm)
- 320
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 83
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Outer diameter (mm)
- 320
- With movement sensor
- Yes
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 250
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 10
- Suitable for lamp power (min) (W)
- 12
- No dimming function
- Yes
- Degree of protection (IP), front side
- IP44
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 92
- Lamp type
- LED not exchangeable
- Type of grid
- White
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 26
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 4000
- Degree of protection (IP)
- IP44
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1000
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 12
- Protection class according to IEC 61140
- II
- Dimming DALI
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 83
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Plastic
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 94
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM5
- Dimming trailing edge
- No
- Suitable for wall mounting
- Yes
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 250
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 61
Product versions
| Item description | Code | |
|---|---|---|
| Lumi 320 IP44 12W/840 RA 10-100 WH | 4297218 |
|
| Lumi 400 IP44 18W/840 RA 10-100 WH | 4297219 |
|
| Lumi 320 IP44 12W/830 PIR MS PCO WH | 4209538 |
|
| Lumi 320 IP44 12W/840 PIR MS PCO WH | 4297217 |
