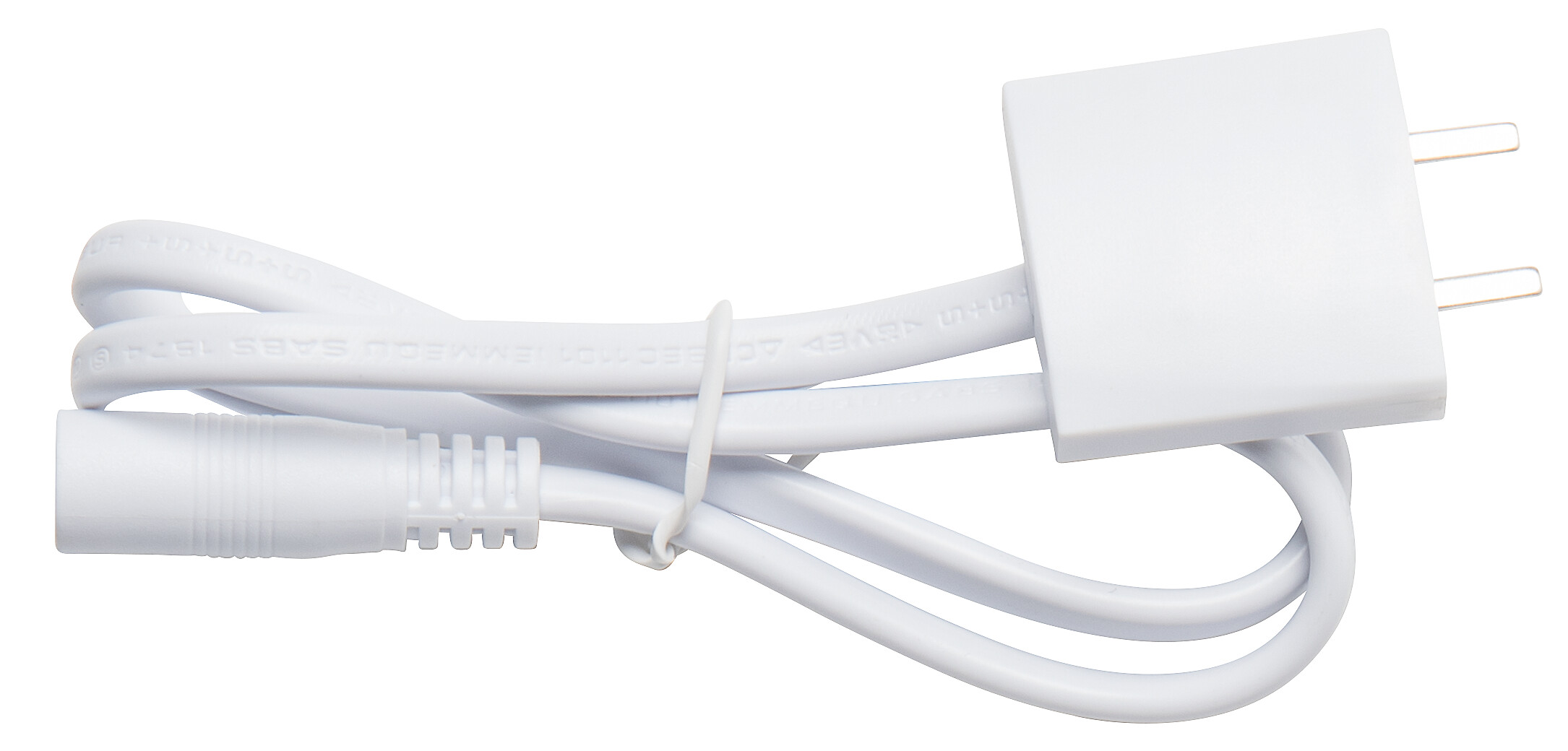

Linear Input cable 500mm
A modular LED profile system. Build a configuration that suits your needs by combining different components. Available in various lengths and two colour temperatures (3000 or 4000 K). Connect the profiles directly or use connectors and extension cables. DC 24 V drivers: 40 W (max. 2.3 m 35 W), 60 W (max. 3.6 m 55 W) or 80 W (max. 5 m 75 W). Components sold separately.
Accessories for the extendable Linear LED profile series, components sold separately.
Drivers
Connection cables
Extension cables
Switches
Splitter
Extension lead
Corner connectors
- Code
- 4118768
Technical info
Structure
- Type of accessory/spare part
- End-feed
- Colour
- White
Mounting
- Number of cores
- 2
- Nominal cross section (mm²)
- 0.75 mm²
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Linear LED-Driver 40W 24V | 4118766 |
4118766 |
40x140x30mm |
||||
|
Linear LED-Driver 60W 24V | 4118767 |
4118767 |
45x160x30mm |
||||
|
Linear LED-Driver 80W 24V | 4118780 |
4118780 |
60x185x30mm |
||||
|
Linear Input cable 500mm | 4118768 |
4118768 |

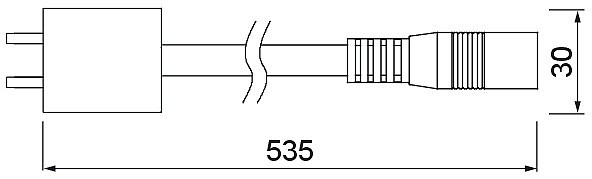

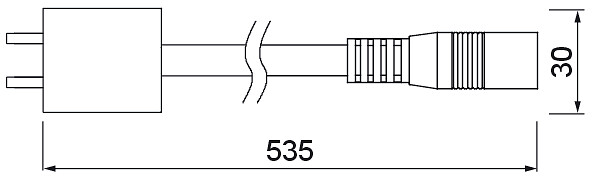

535x30x9mm |
||||
|
Linear Push on/off w/cable 500mm | 4118769 |
4118769 |
555x30x9mm |
||||
|
Linear Sensor on/off cable 500mm | 4118770 |
4118770 |
555x30x9mm |
||||
|
Linear DIM on/off w/cable 500mm | 4118771 |
4118771 |
555x30x9mm |
||||
|
Linear Cable 250mm | 4118772 |
4118772 |
250x30x9mm |
||||
|
Linear Cable 1000mm | 4118773 |
4118773 |
1000x35x10mm |
||||
|
Linear Split cable 1-4 | 4118774 |
4118774 |
515x35x10mm |
||||
|
Linear Extension cable 1000mm | 4118775 |
4118775 |
1000x35x10mm |
||||
|
Linear l-connector left | 4118778 |
4118778 |
30x30x9mm |
||||
|
Linear l-connector right | 4118779 |
4118779 |
30x30x9mm |
||||
|
Linear X-connector 1W/830 85lm | 4146680 |
4146680 |
76x30x9mm |
- Electrical number (FIN)
- 4118768
- Electrical number (SWE)
- 7503145
- GTIN
- 6435200227386
- Airam code
- A1LIDF
- Code
- 4118768
