Name: LED PAR16 830-822 345lm GU10 36 DTW
SKU: 9410740

PAR16 reflector LED lamp Dim to warm 3.8W 3000-2200K GU10 345lm 680cd 36D 15000h 50x53mm, blister packing. Colour temperature decreases 3000K-2200K when dimming. Supply frequency ~50/60Hz.

See product details

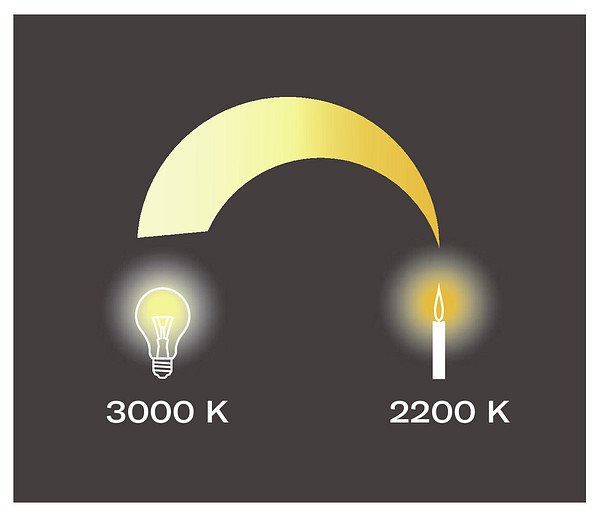

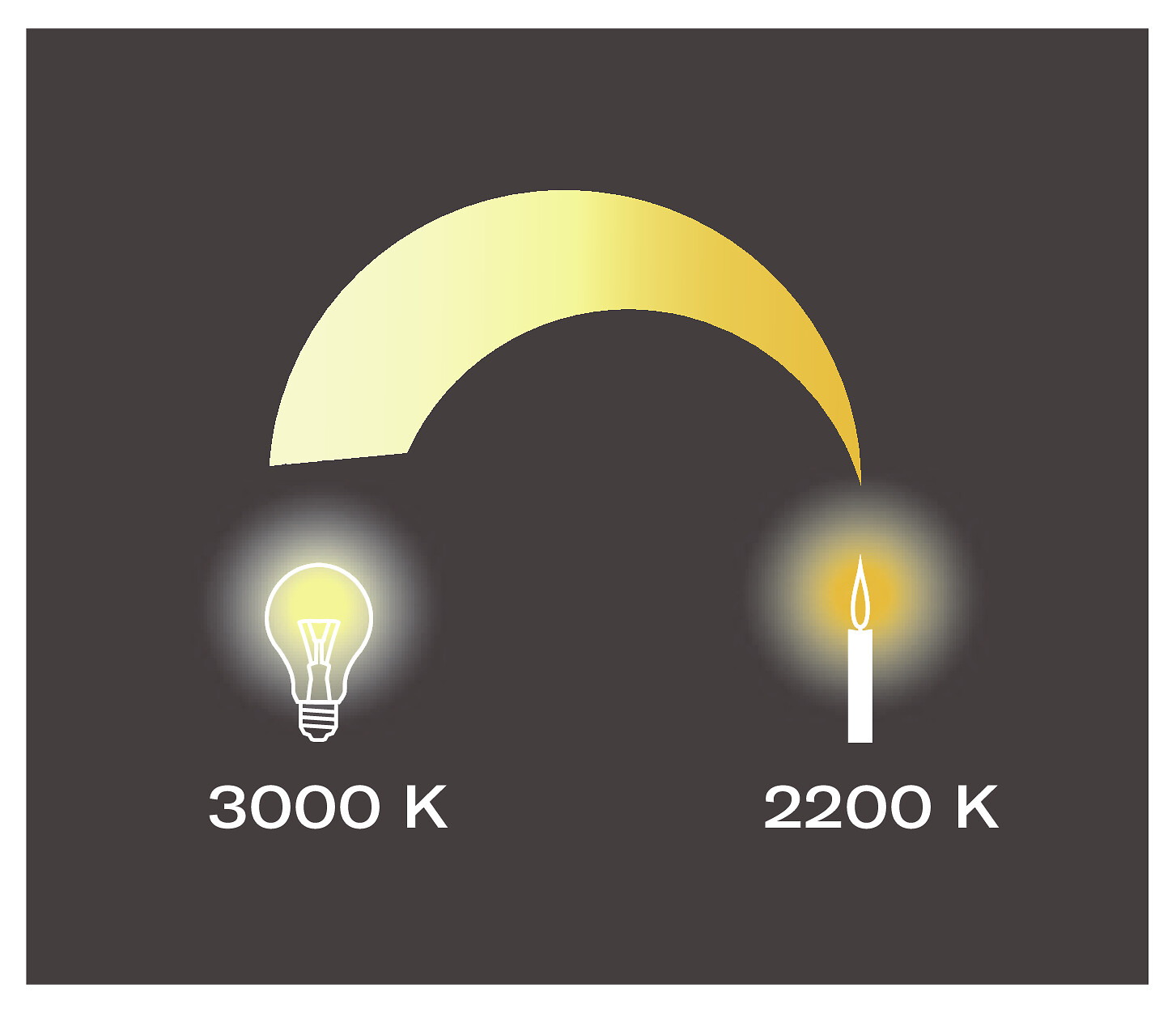

With the lamps in this series, you can easily adjust the lighting atmosphere: the more you dim using an LED dimmer, the warmer the light colour becomes. The lamps adjust smoothly between white light at 3000 K and warm light at 2200 K. Technical information is clearly presented on the packaging.

Colour temperature adjustable with a standard dimmer between 3000 K and 2200 K, opal bulb.
All lamps in the range are dimmable.
Good colour rendering, CRI > 80.
Continuous, even spectrum with no colour distortion.
No UV or IR radiation.
Three-year warranty.

Code: 9410740

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 21 mA
Nominal current (max) (mA): 21 mA
Power factor: 0.7
Lamp power (min) (W): 3.8 W
Lamp power (max) (W): 3.8 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 345 lm
Lamp efficacy (lm/W): 91 lm/W
Lamp shape: Reflector
Filament lamp: No
Type of glass/cover: Prism
Cap: GU10
Energy efficiency class according to EU regulation 2019/2015: F
Lamp designation: PAR16
Min. number of switching cycles: 300000
Weighted energy consumption in 1,000 hours (kWh): 4 kWh
Average nominal lifespan (h): 15000 h

Photometric data

Luminous flux (min) (lm): 345 lm
Luminous flux (max) (lm): 345 lm
Luminous intensity (cd): 680 cd
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Warm <3300 K
Colour temperature (min) (K): 2200 K
Colour temperature (max) (K): 3000 K
Beam angle (min) (°): 36 °
Beam angle (max) (°): 36 °
Colour consistency (McAdam ellipse): SDCM6
Photobiological safety according to EN 62471: RG1

Structure

Material of light bulb: Glass
Colour: Other
Housing colour: Colourless

Dimming and control

Dimmable: Yes
Dimming trailing edge: Yes
Dimming leading edge: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 50 mm
Length (mm): 53 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Colour temperature	Luminous flux	Power	Dimensions
LED C35 830-822 470lm E14 DTW OP	9410731	2200-3000K	470lm	4.5W	35x35x97mm
LED P45 830-822 470lm E14 DTW OP	9410732	2200-3000K	470lm	4.5W	45x45x80mm
LED P45 830-822 470lm E27 DTW OP	9410733	2200-3000K	470lm	4.5W	45x45x78mm
LED A60 830-822 806lm E27 DTW OP	9410735	2200-3000K	806lm	7W	60x60x108mm
LED PAR16 830-822 345lm GU10 36 DTW	9410740	2200-3000K	345lm	3.8W	50x50x53mm
