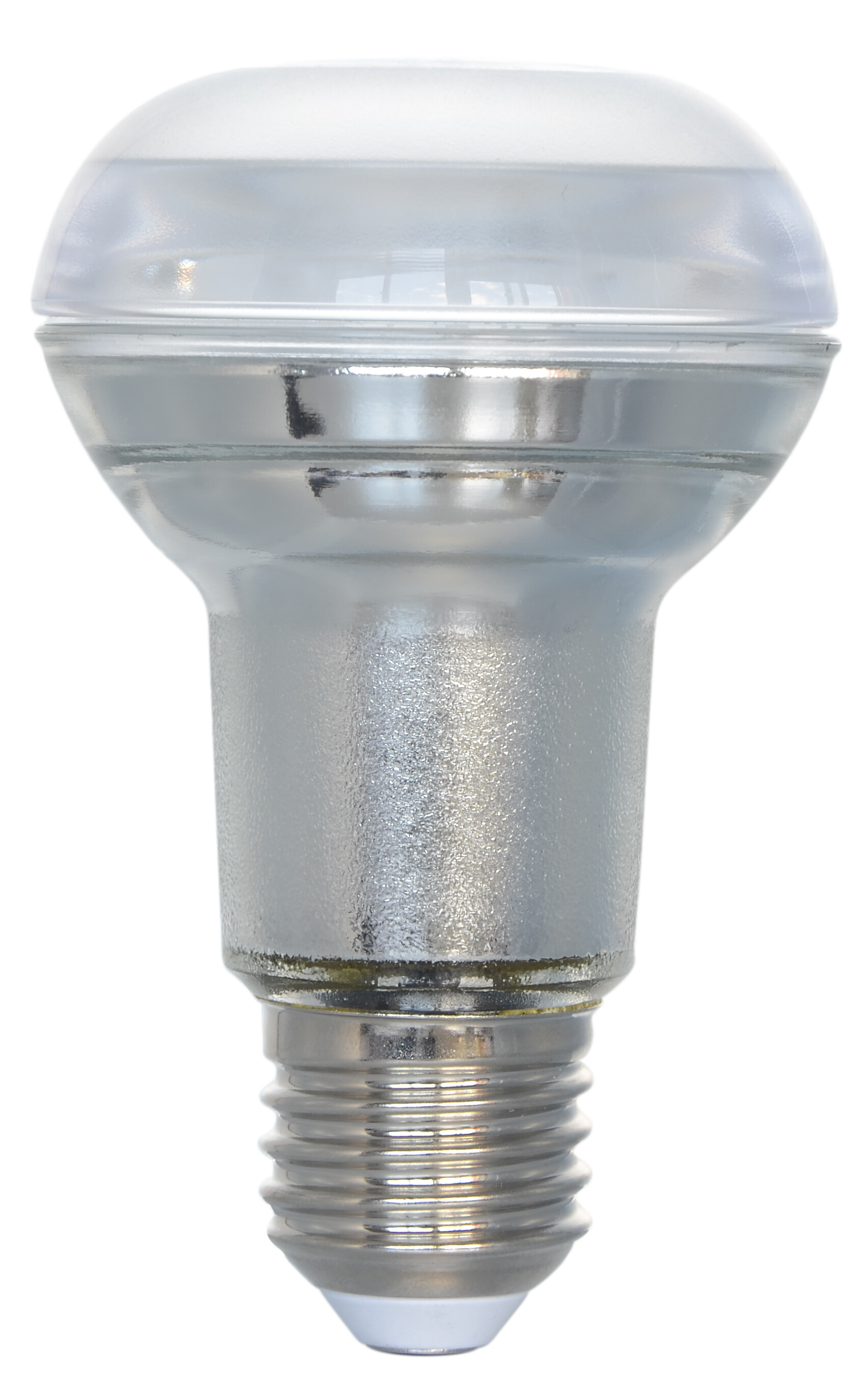

LED FG R63 830 345lm E27 36D DIM

Name: LED FG R63 830 345lm E27 36D DIM
SKU: 4714162

See product details

A very comprehensive lamp range offering options for all home lighting needs. These attractive and durable lamps fully replace incandescent, halogen and energy-saving lamps. The colour temperature of the lamps is white light (3000 K). The clear glass bulb reveals the LED filament inside the lamp. These elegant lamps are especially suitable for decorative luminaires where the light source is clearly visible. Technical specifications are clearly presented on the packaging.

Lamp lifetime 15,000 hours.
Base E14 and E27. Other base options available.
Instant start and full light output, even in cold conditions.
Operating temperature range −30 … +40 °C.
Good colour rendering CRI > 80.
Continuous, even spectrum with no colour distortion.
Colour temperature 3000 K, clear bulb.
Luminous efficacy up to 132 lm/W.
No UV or IR radiation.
Mercury-free.
Three-year warranty.

Code: 4714162

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Power factor: 0.8
Lamp power (min) (W): 4 W
Lamp power (max) (W): 4 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 345 lm
Lamp efficacy (lm/W): 87 lm/W
Lamp shape: Reflector
Filament lamp: No
Type of glass/cover: Clear
Cap: E14
Energy efficiency class according to EU regulation 2019/2015: F
Lamp designation: R63
Min. number of switching cycles: 50000
Weighted energy consumption in 1,000 hours (kWh): 4 kWh
Average nominal lifespan (h): 15000 h

Photometric data

Luminous flux (min) (lm): 345 lm
Luminous flux (max) (lm): 345 lm
Luminous intensity (cd): 570 cd
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Warm <3300 K
Colour temperature (min) (K): 3000 K
Colour temperature (max) (K): 3000 K
Beam angle (min) (°): 36 °
Beam angle (max) (°): 36 °
Colour consistency (McAdam ellipse): SDCM6

Structure

Material of light bulb: Plastic
Colour: Other
Housing colour: Other

Dimming and control

Dimmable: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
LED C35 830 470lm E14 OIVA CL	9410789		3000K	470lm	3.8W	35x35x98mm
LED C35 830 806lm E14 OIVA CL	9410790		3000K	806lm	6W	35x35x98mm
LED P45 830 470lm E14 OIVA CL	9410794		3000K	470lm	3.8W	45x45x78mm
LED P45 830 470lm E27 OIVA CL	9410792		3000K	470lm	3.8W	45x45x76mm
LED A60 830 470lm E27 OIVA CL	9410785		3000K	470lm	3.6W	60x60x105mm
LED A60 830 806lm E27 OIVA CL	9410786		3000K	806lm	6.7W	60x60x105mm
LED FG R50 830 345lm E14 36D DIM	4714161	4714161	3000K	345lm	4W	50x50x84mm
LED FG R63 830 345lm E27 36D DIM	4714162	4714162	3000K	345lm	4W	63x63x102mm
