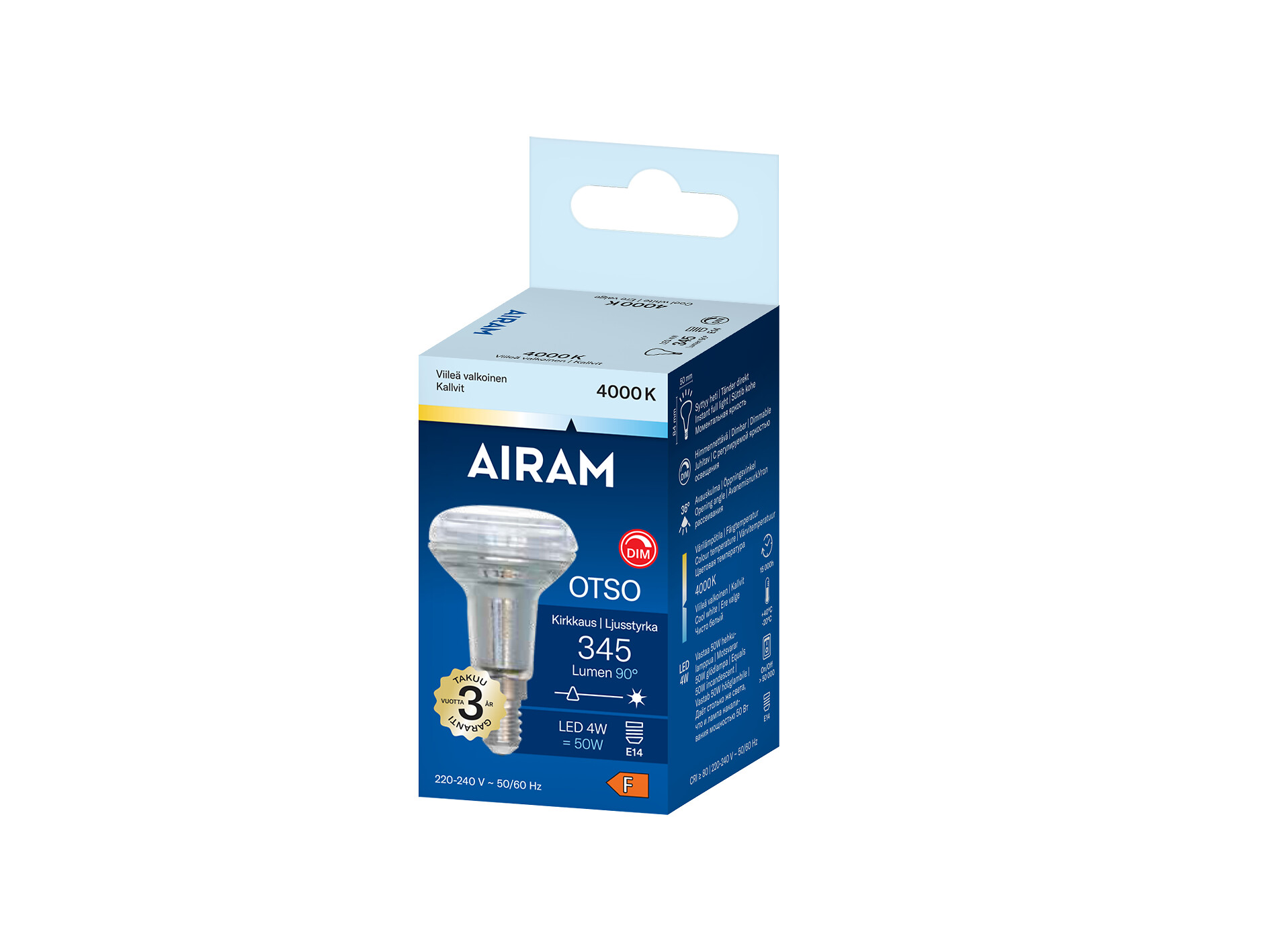

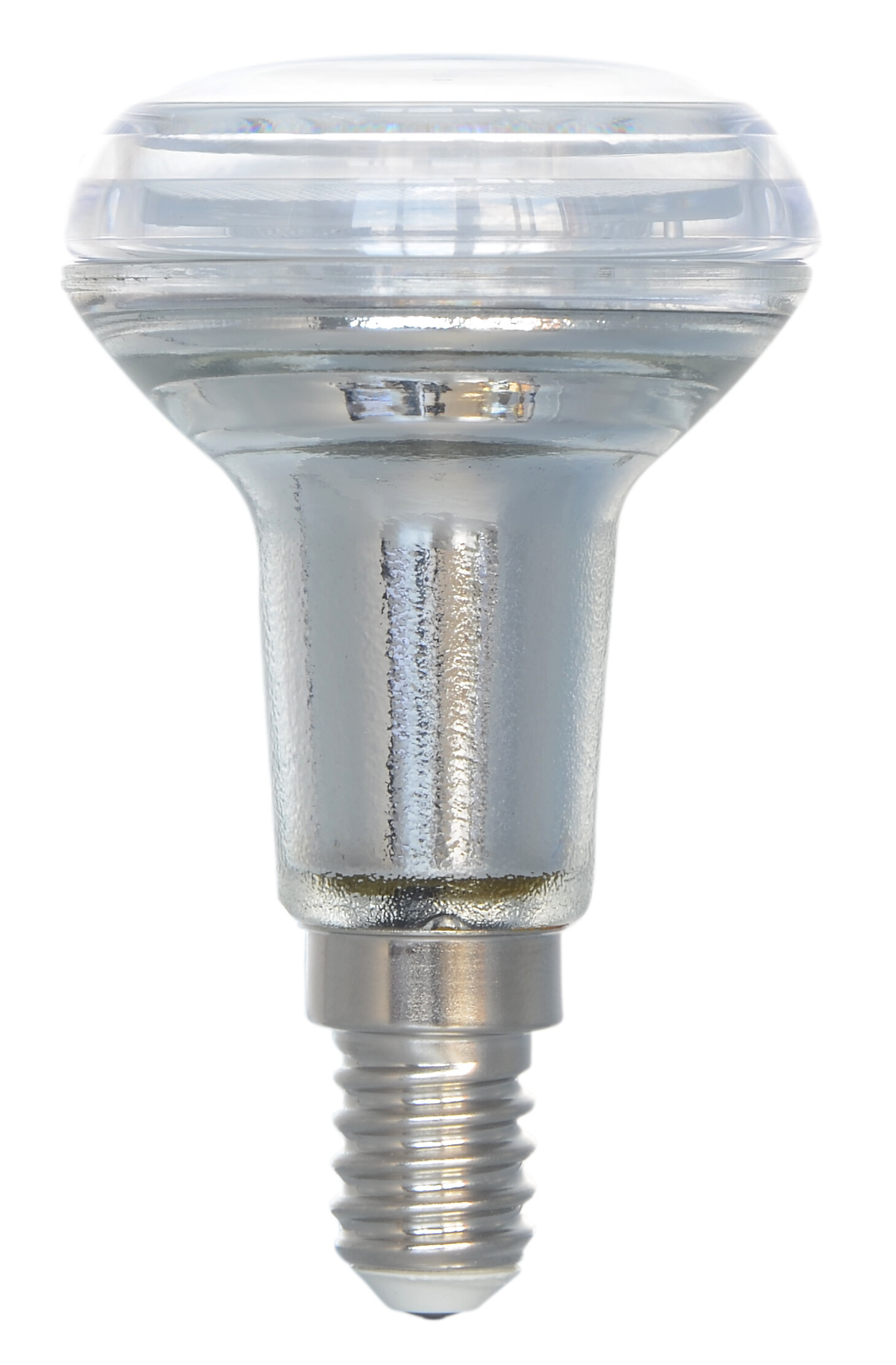

LED FG R50 840 345lm E14 36D DIM

Name: LED FG R50 840 345lm E14 36D DIM
SKU: 4714126

Clear dimmable R50 reflector LED lamp 4W 4000K E14 345lm 36D 15000h 50x84mm, cardboard packing. Supply frequency ~50/60Hz.

See product details

A very comprehensive lamp range offering options for all home lighting needs. The attractive and durable lamps with full glass bulbs fully replace incandescent, halogen and energy-saving lamps. The colour temperature of the lamps is cool white (4000 K). The clear glass bulb reveals the LED filament inside the lamp. These elegant lamps are particularly suitable for decorative luminaires where the light source is clearly visible. Technical specifications are clearly presented on the packaging.

Lamp lifetime 15,000 hours.
Base E14 and E27. Other base options available.
Instant start and full light output, even in cold conditions.
Operating temperature range −30 … +40 °C.
Good colour rendering CRI > 80.
Continuous, even spectrum with no colour distortion.
Colour temperature 4000 K, clear bulb.
Luminous efficacy up to 132 lm/W.
No UV or IR radiation.
Mercury-free.
Three-year warranty.

Code: 4714126

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 20 mA
Nominal current (max) (mA): 24 mA
Power factor: 0.8
Lamp power (min) (W): 4 W
Lamp power (max) (W): 4 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 345 lm
Lamp efficacy (lm/W): 86 lm/W
Lamp shape: Reflector
Filament lamp: No
Type of glass/cover: Clear
Cap: E14
Energy efficiency class according to EU regulation 2019/2015: F
Lamp designation: R50
Min. number of switching cycles: 50000
Weighted energy consumption in 1,000 hours (kWh): 4 kWh
Average nominal lifespan (h): 15000 h

Photometric data

Luminous flux (min) (lm): 345 lm
Luminous flux (max) (lm): 345 lm
Luminous intensity (cd): 570 cd
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Neutral 3300-5300 K
Colour temperature (min) (K): 4000 K
Colour temperature (max) (K): 4000 K
Beam angle (min) (°): 36 °
Beam angle (max) (°): 36 °
Colour consistency (McAdam ellipse): SDCM6
Photobiological safety according to EN 62471: RG1

Structure

Material of light bulb: Plastic
Colour: Transparent
Housing colour: Other

Dimming and control

Dimmable: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 50 mm
Length (mm): 84 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
LED C35 840 470lm E14 FIL	9410742		4000K	470lm	3.8W	35x35x98mm
LED P45 840 470lm E14 FIL	9410743		4000K	470lm	3.8W	45x45x78mm
LED P45 840 470lm E27 FIL	9410744		4000K	470lm	3.8W	45x45x76mm
LED A60 840 470lm E27 FIL	9410747		4000K	470lm	3.6W	60x60x105mm
LED A60 840 806lm E27 FIL	9410745		4000K	806lm	6.7W	60x60x105mm
LED A60 840 1100lm E27 FIL	9410746		4000K	1100lm	7W	60x60x105mm
LED T25 840 120lm E14 FRIDGE LAMP	9410741		4000K	120lm	1.1W	25x25x62mm
LED T25 840 120lm E14 PAPER STAR	9410807		4000K	120lm	1.1W	25x25x62mm
LED FG R50 840 345lm E14 36D DIM	4714126	4714126	4000K	345lm	4W	50x50x84mm
LED FG R63 840 345lm E27 36D DIM	4714133	4714133	4000K	345lm	4W	63x63x102mm
LED FG C35 840 470lm E14 FIL DIM	4713830	4713830	4000K	470lm	3.7W	35x35x98mm
