Residential spaces, outdoor

Holm 3Eye

Name: Holm 3Eye
SKU: 4510253

Holm 3Eye IP65 GU10 GLFR ANT

Holm 3Eye Ground luminaire max. 7W No dim; IP65; IK03; Protection cl. I; LED exchangeable; Suitable for through wiring; 3x2.5mm²; Colour ant; Cover Glass matt/satinized

See product details

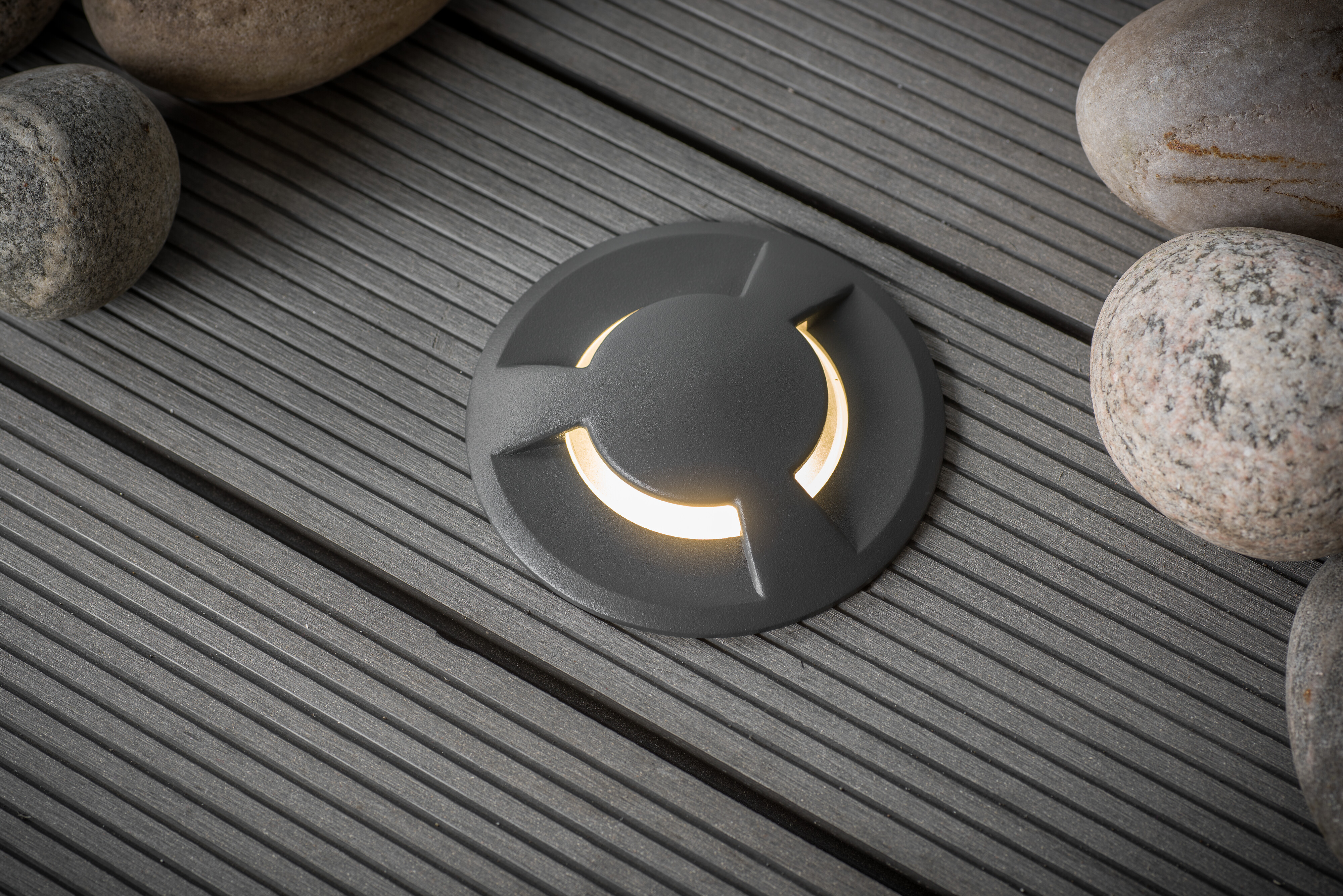

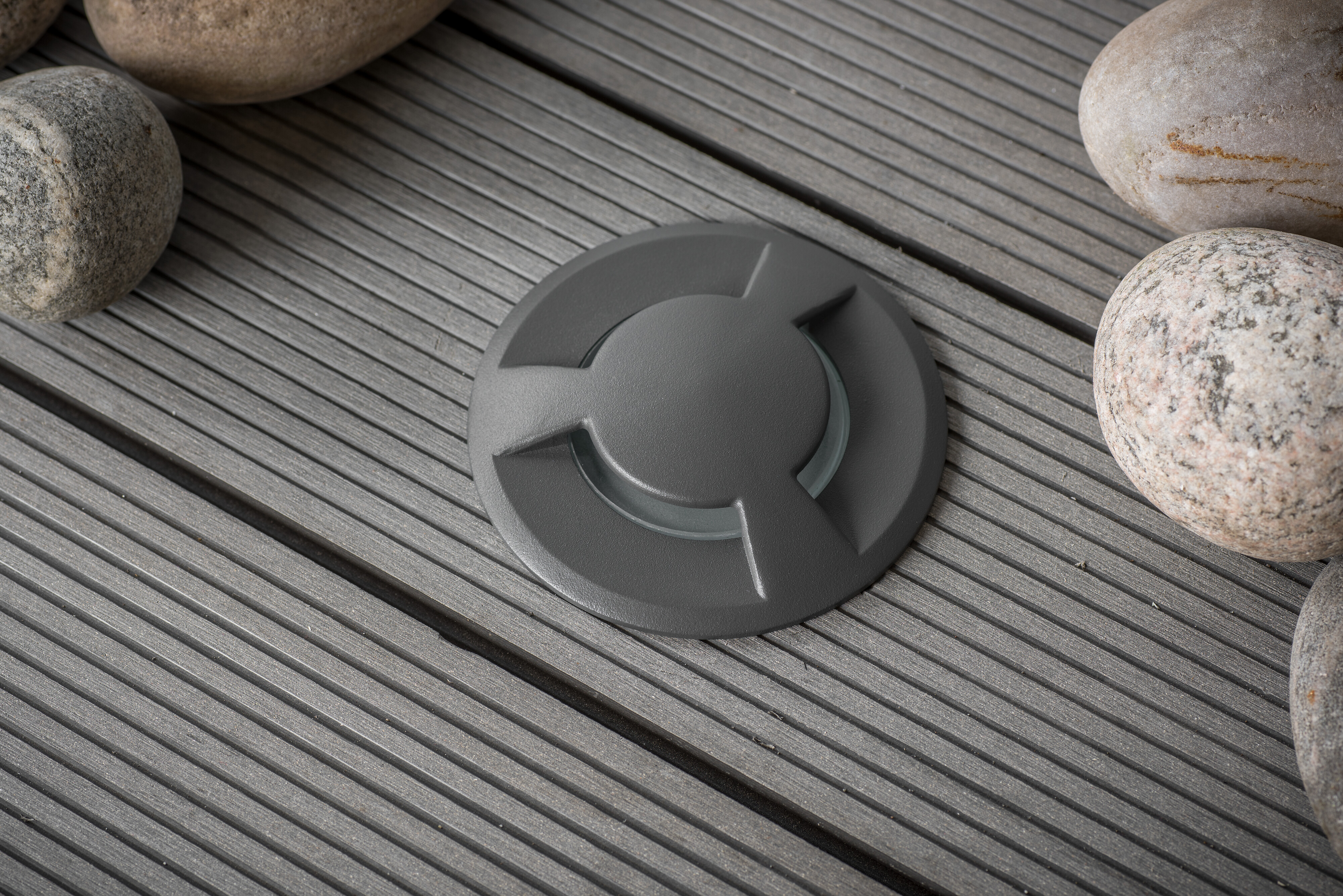

The recess-mounted Holm Eye luminaire, which distributes light to the sides, is designed for use on patios or by front doors on residential properties. You can also use it indoors as an eye-catching accent lighting solution. The luminaire withstands being stepped on. It has a dust- and spatter-proof housing. You can select a GU10 lamp with a colour temperature and beam of your choice.

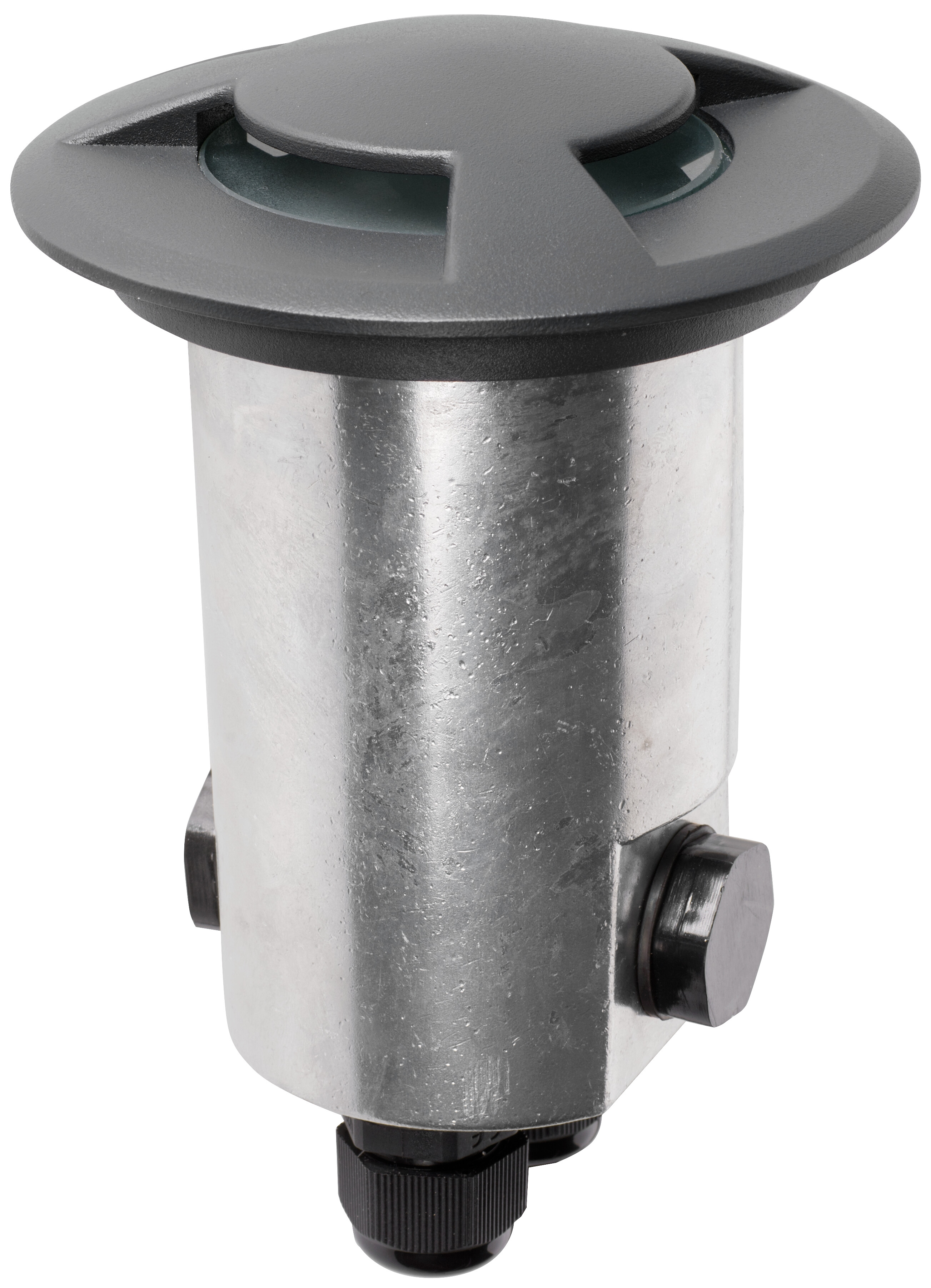

Aluminium frame, decorative ring stainless steel.
Frosted glass globe.
Light blockers made of aluminium.
Linkable 3 x 2,5 mm2.
Enclosure class IP65.
Not suitable for embedding in soil or concrete.
IK03.
LED-lamp PAR16 GU10, max 7W, not included.
Ambient temperature range -20 … 25 °C, depending on the bulb.

Code: 4510253

Technical info

Structure

Lamp type: LED exchangeable
Light source included: No
Suitable for number of lamps: 1
Lamp holder: GU10
Housing material: Aluminium
Housing colour: Anthracite
Cover material: Glass matt/satinized
Control gear included: No
Exchangeable control gear: No
Adjustable: No
Energy efficiency class of light source according to EU regulation 2019/2015: Not required

Electrotechnical data

Voltage type: AC
Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Type of control gear: Not required
Protection class according to IEC 61140: I
Suitable for lamp power (min) (W): 1 W
Suitable for lamp power (max) (W): 7 W

Dimming and control

Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DMX: No
Dimming DSI: No
Dimming LineSwitch: No
Dimming mains voltage modulation: No
Dimming manufacturer's proprietary system: No
Dimming trailing edge: No
Dimming leading edge: No
Dimming potentiometer (integrated): No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming with push-button: No
Dimming Zigbee: No
No dimming function: Yes
Constant luminous flux control: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Photometric data

Light distributor: Diffuser lens/optic/panel
Light sharing: Asymmetric
Beam angle: Open beam
Colour temperature switchable: No
Lumen setting adjustable: No
Beam angle adjustable: No

Mounting

Degree of protection (IP): IP65
Impact strength: IK03
Over rollable: No
Max. surface temperature (°C): 59 °C
Type of wiring: Suitable for through wiring
Number of poles: 3
Conductor cross section (mm²): 2.5 mm²
Connection type: Screwed terminal
Electrical connection with connector system: No

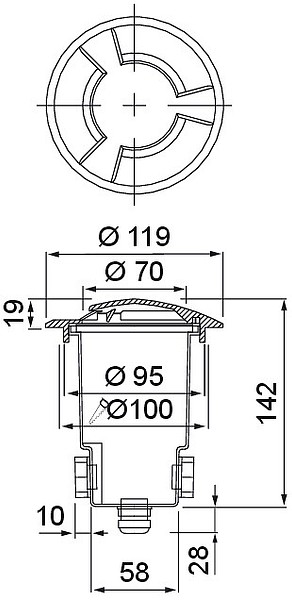

Measurements

Width (mm): 119 mm
Height/depth (mm): 170 mm
Length (mm): 119 mm
Outer diameter (mm): 119 mm
Built-in width (mm): 100 mm
Built-in height/depth (mm): 170 mm
Built-in length (mm): 100 mm
