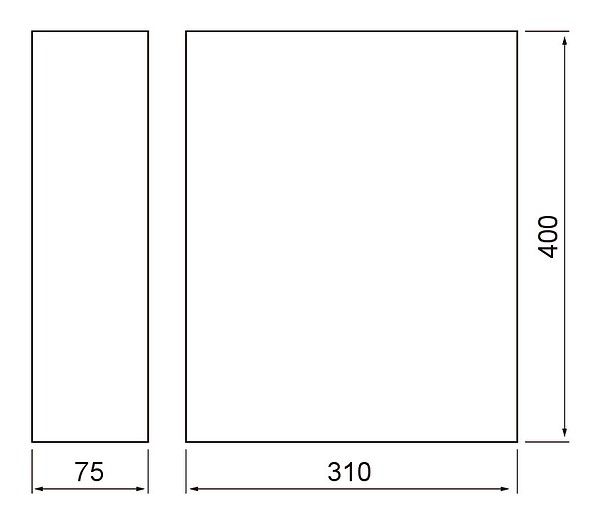

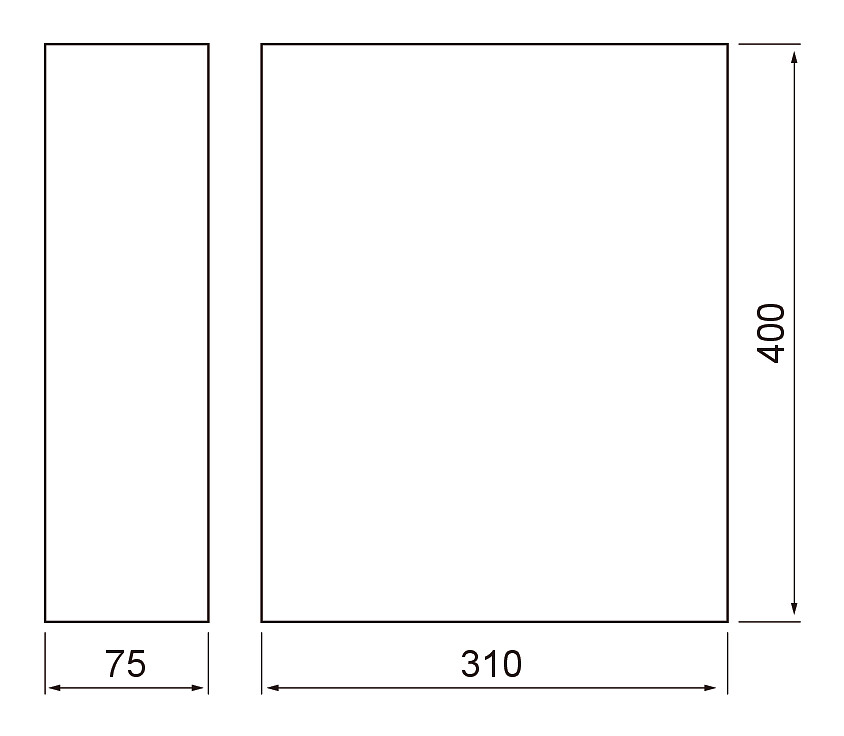

Fuse box 310X400

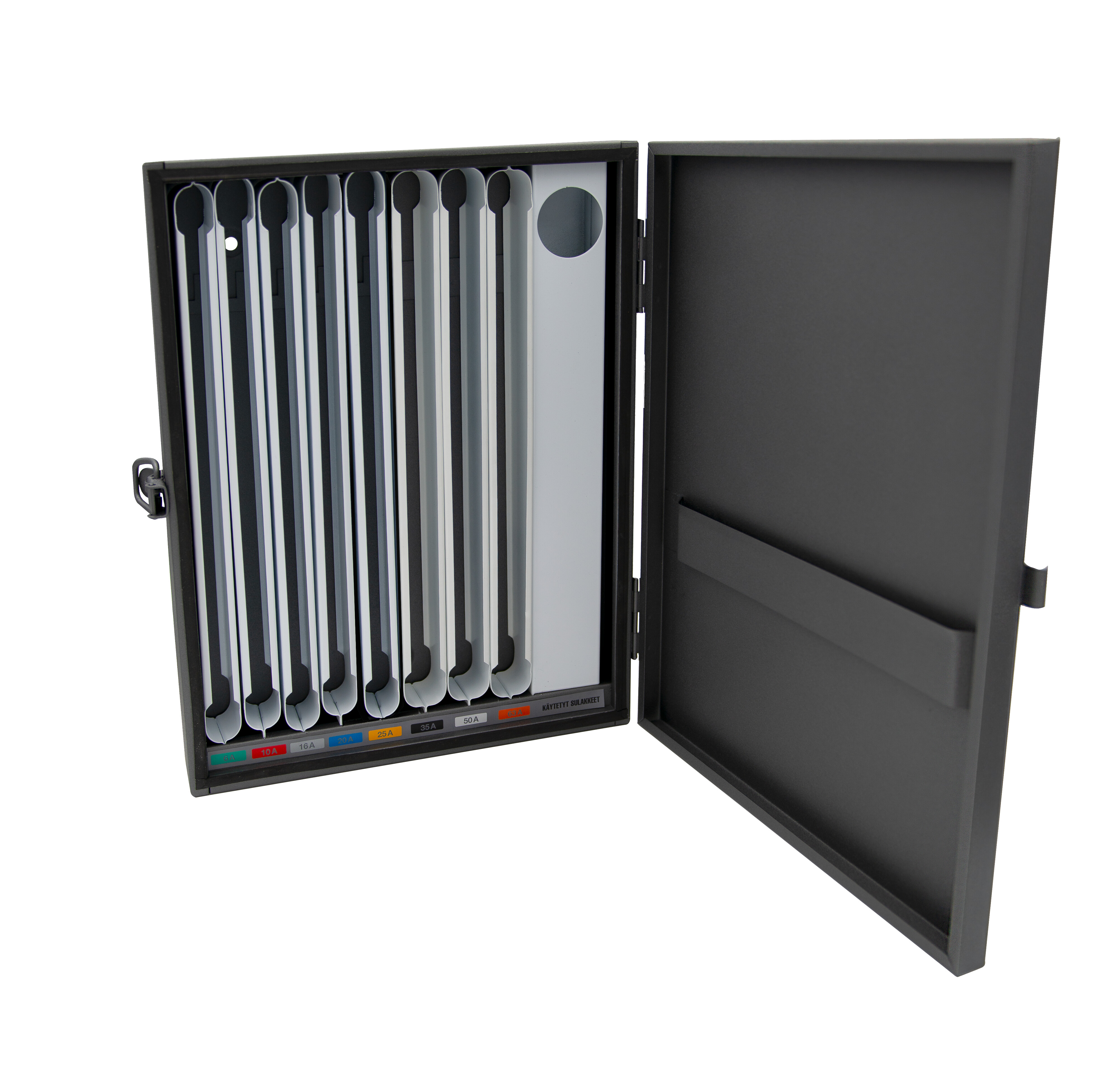

A robust, zinc-plated steel fuse box with a cover for bottle fuses. The fuse box has a cover equipped with hinges and a lock. The cover is sealed with a foamed plastic strip to prevent dust and dirt from accumulating on the fuses. The housing has a grey dirt-repellent powder coating surface.

Zinc-plated steel housing and cover.
Steel latch and hinges.
Grey powder coating (Interpon Thorium).

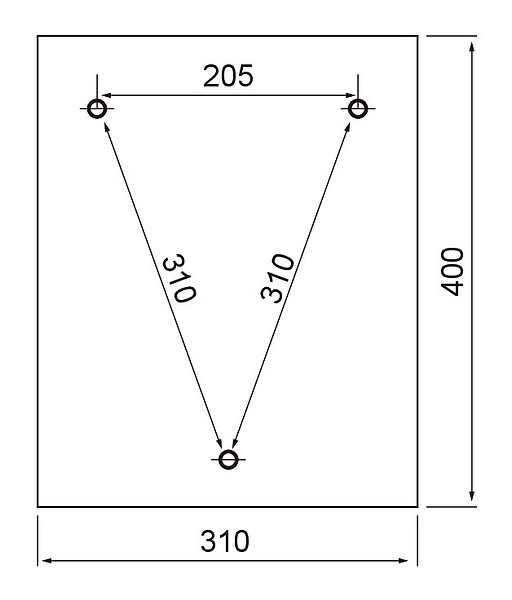

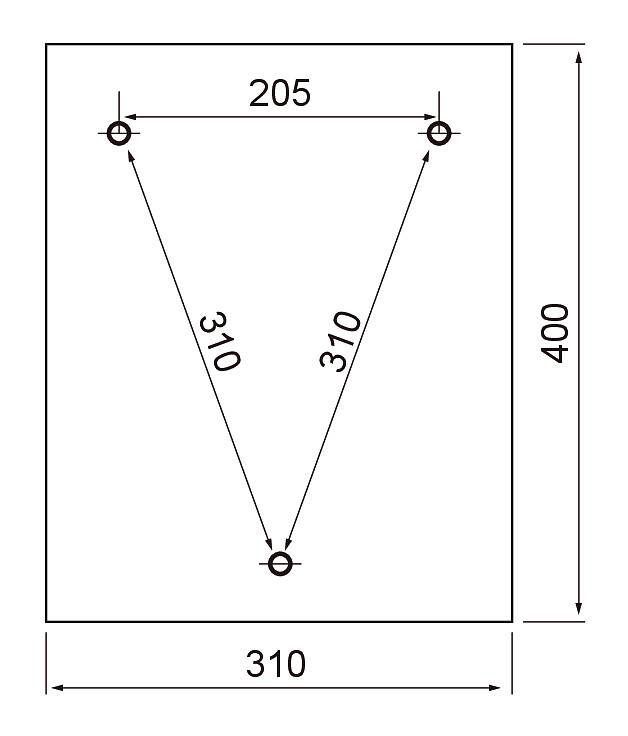

Wall mounting.
Bottle fuses 2–25A/5X15 pcs, 35–65A/3X12 pcs.
Several RAL colours are available by special order, including 7016, 7024, 7032, 9005, 9006 and 9016.
