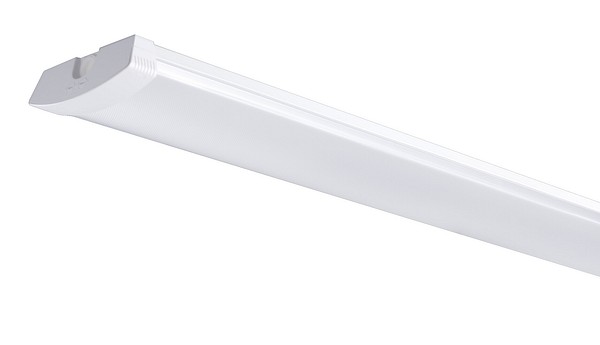

Optimus MP 600 IP44 2600lm
Optimus MP Industrial luminaire 11W-20W 3000K/4000K 2600lm No dim; IP44; IK07; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Through-wired; 5x2.5mm²; Housing Steel; Colour wh; Cover Plastic, structured; C16 max. 108
Optimus MP is an excellent choice when you need a versatile and energy-efficient industrial luminaire. The luminaire has a low profile and a microprism diffuser that provides even light. The luminaire comes with a satin film that reduces glare and provides even light. You can increase the light output by removing the film. Optimus MP is suitable for industrial spaces, commercial buildings, warehouses, parking garages, carports, hallways and damp areas. The series has three different lengths and the power can be changed between four different options. The luminaire has an excellent lumen/watt ratio and lifespan.
Housing made of steel and micro-prismatic diffuser of acrylic (ACMP).
White.
Protection class I.
Surface mounting, suspension mounting with accessories.
Throughwired 5 x 2,5 mm2: On/off, Radar M/S, Dali, Casambi (Bluetooth mesh) and ActiveAhead (G2 sensor).
Radar M/S 1200 mm can be chained with a maximum of seven slave luminaires.
Radar M/S 1500 mm can be chained with a maximum of five slave luminaires.
PIR M/S can be chained with a maximum of nine slave luminaires.
Power of on/off, Radar and Pir models adjustable from the luminaire:
600 mm: 11 W / 1400 lm, 13 W / 1700 lm, 16 W / 2000 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 29 W / 4000 lm, 35 W / 4900 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 33 W / 4600 lm, 40 W / 5600 lm, 47 W / 6600 lm.
Power of Dali models adjustable from the luminaire:
600 mm: 11 W / 1430 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 47 W / 6600 lm.
By removing the satin film from the luminaire, the luminous flux increases by approximately 14 %.
Mounting height 2–6 m.
CCT changeable from luminaire 3000 – 4000 K. CRI > 80 / Ra > 80.
IP44.
IK07.
MacAdam 3 SDCM.
On/off, Dali-2 with direct push button control (230V), Casambi, and ActiveAhead.
The maximum number of luminaires used in direct push button control in one group is 20 pcs.
Operating environment temperature -20 … 40 °C.
Service life L70 > 100,000 h (Ta25°C).
Service life L80 100,000 h (Ta25°C).
- Code
- 4338596
Downloads
Technical info
- Electrical number (FIN)
- 4338596
- Electrical number (SWE)
- 7219478
- GTIN
- 6435200308580
- Airam code
- A3OPAA
- Code
- 4338596
- Nominal voltage (min) (V)
- 220
- With mounting material
- Yes
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminaire efficacy (max) (lm/W)
- 130
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No
- Height/depth (mm)
- 52
- Suitable for suspended mounting
- Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 65
- Voltage type
- AC
- Stroboscope effect value SVM
- 0.4
- Suitable for surface mounting
- Yes
- Connection type
- Screwless terminal
- Constant luminous flux control
- No
- Light source included
- Yes
- Width (mm)
- 155
- Power factor
- 0.9
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- IFTTT support available
- No
- Housing surface protection
- Powder coating
- Beam angle adjustable
- No
- Suitable for wall mounting
- Yes
- Dimmable
- No
- Dimming DSI
- No
- With switch
- No
- With light sensor
- No
- Colour temperature (min) (K)
- 3000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Degree of protection (IP), front side
- IP44
- Light sharing
- Symmetric
- Colour temperature switchable
- Discrete positions
- Dimming with push-button
- No
- Cover material
- Plastic, structured
- Luminaire efficacy (min) (lm/W)
- 130
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- No dimming function
- Yes
- Suitable for number of lamps
- 2
- Dimming leading edge
- No
- Type of grid
- Matt
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Connectable conductor cross section (min) (mm²)
- 1.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for ceiling mounting
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 2600
- Unified Glare Rating (UGR)
- 22
- Effective luminous flux (lm)
- 2600
- Colour of light (alphanumeric)
- White
- Number of poles
- 5
- Max. number of luminaires per miniature circuit breaker B16
- 46
- Colour consistency (McAdam ellipse)
- SDCM3
- Suitable for clamp-mounting
- Yes
- Impact strength
- IK07
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1430
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Suitable for recessed mounting
- No
- Dimming potentiometer (integrated)
- No
- Bluetooth operated
- No
- Light distributor
- Diffuser lens/optic/panel
- Rated life time L80/B50 at 25 °C
- 100000
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Total harmonic distortion (THD) (%)
- 20
- Beam angle
- Extreme wide beam >80°
- Exchangeable control gear
- Yes
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 130
- Nominal current (min) (mA)
- 200
- Length (mm)
- 595
- Compatible with Casambi
- No
- Luminaire may be covered with thermally insulating material
- -
- Max. number of luminaires per miniature circuit breaker C16
- 108
- Dimming trailing edge
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Through-wired
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Total harmonic distortion
- 20
- Nominal current (max) (mA)
- 350
- With air slots
- No
- Flickering value Pst LM
- 1
- Colour temperature (max) (K)
- 4000
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Light outlet
- Direct
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP44
- Suitable for lamp power (min) (W)
- 11
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for emergency lighting
- No
- Fit for workplace acc. EN 12464-1
- No
- Housing material
- Steel
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- Positions
- With movement sensor
- No
- Suitable for lamp power (max) (W)
- 20
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -20
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 40
- Conductor cross section (mm²)
- 2.5
- Maximum system power (W)
- 20
- Suitable for light line configuration
- No
- Dimming DALI
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- B
- Degree of protection (IP)
- IP44
- With presence indicator
- No
Product versions
| Item description | Code | |
|---|---|---|
| Optimus MP 600 IP44 2600lm | 4338596 |
|
| Optimus MP 1200 IP44 5600lm | 4338597 |
|
| Optimus MP 1500 IP44 6600lm | 4338598 |
|
| Optimus MP 600 IP44 2600lm PIR/MS | 4338668 |
|
| Optimus MP 1200 IP44 5600lm PIR/MS | 4338669 |
|
| Optimus MP 1500 IP44 6600lm PIR/MS | 4338670 |
|
| Optimus MP 1200 IP44 5600lm RA/MS | 4338600 |
|
| Optimus MP 1500 IP44 6600lm RA/MS | 4338601 |
|
| Optimus MP 600 IP44 2600lm DA2 | A3OPAA-DALI |
|
| Optimus MP 1200 IP44 5600lm DA2 | A3OPAB-DALI |
|
| Optimus MP 1500 IP44 6600lm DA2 | A3OPAC-DALI |
|
| Optimus MP 600 IP44 2600lm CA | A3OPAA-CA |
|
| Optimus MP 1200 IP44 5600lm CA | A3OPAB-CA |
|
| Optimus MP 1500 IP44 6600lm CA | A3OPAC-CA |
|
| Optimus MP 600 IP44 2600lm AA | A3OPAA-AA |
|
| Optimus MP 1200 IP44 5600lm AA | A3OPAB-AA |
|
| Optimus MP 1500 IP44 6600lm AA | A3OPAC-AA |
