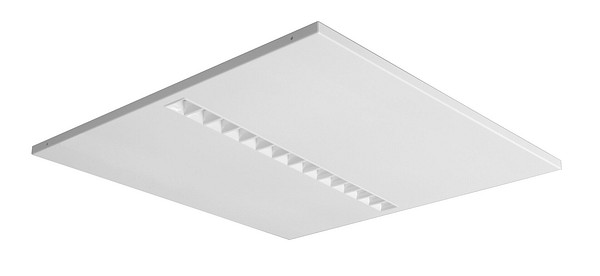

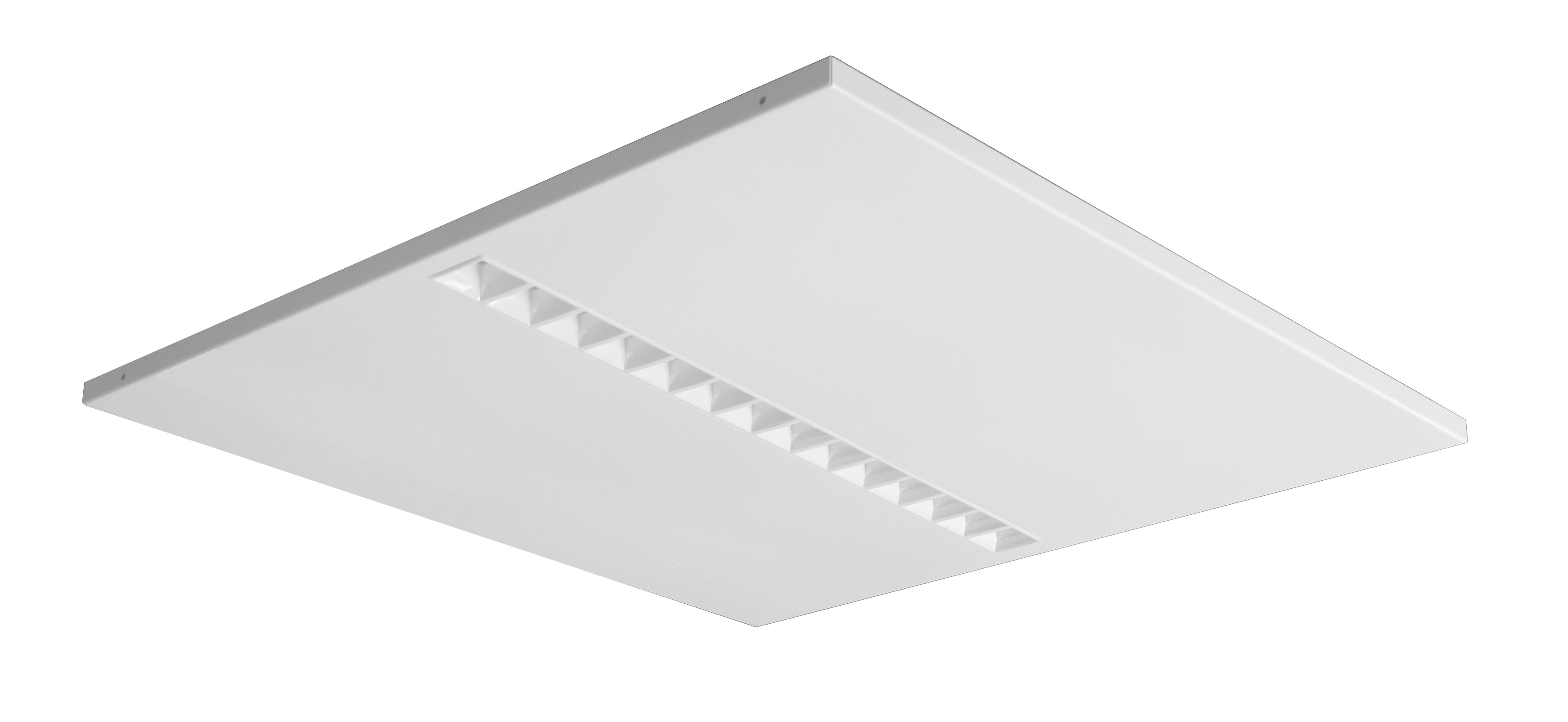

Ebba IP20 22W/840 1WH 80D WH
Ebba Modular luminaire 22W 4000K 3000lm No dim; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 2.5mm²; Housing Steel; Colour wh

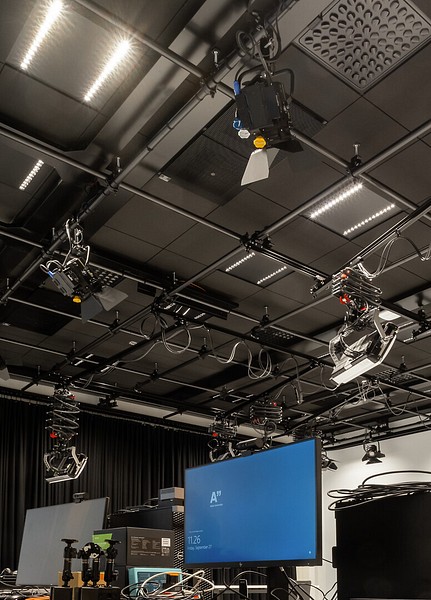

A modular luminaire with minimalistic design for offices and public spaces. The units blend in seamlessly with the ceiling structure, creating a harmonious appearance thanks to their recessed design and glare-free lens optics. Models equipped with a black reflector (UGR<16) are suitable for workstations. The UGR<19 models with a white reflector are ideal for corridors and waiting areas.Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. Surface mounting too is possible. Housings for recessed and surface mounting are available as accessories.
Steel housing, polycarbonate reflector and acrylic lenses.
White housing, RAL 9003; white, RAL 9003 or black, RAL 9005 reflector.
Protection class II.
Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. Alternatively, surface mounting.
Linkable units, 5 x 2.5 mm2.
Installation height 2–4 m.
Colour temperatures 3,000 K and 4,000, K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
Integrated LED 22–42 W, 2,600–6,100 lm.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 80,000 h (Ta25°C).
Power source service life 50,000 h.
Accessories: mounting frame 4289973 and ceiling mounting frame 4297811.
WH = white, DA2 = Dali2.
1WH 80D = white reflector, one light line.
2WH 80D = white reflector, two light lines.
1BK 80D = black reflector, one light line.
2BK 80D = black reflector, two light lines.
Also available as Casambi, ActiveAhead, Philips SR, 1–10 V, Switch Dim and Tunable White solutions on a project-specific basis. Models with a black RAL 9005 housing and a rectangular shape (296 x 1,196 mm) available for order. CRI > 90 available for order. Colour temperatures 2700 K and 5700 K area also available as an option. Models with 11 W / 1,250–1,400 lm by special order. Available with various connecting wire solutions.
- Code
- 4245364
Downloads
Technical info
- Electrical number (FIN)
- 4245364
- Electrical number (SWE)
- 7018208
- GTIN
- 6435200268464
- Airam code
- D2EBAB
- Code
- 4245364
- Nominal voltage (min) (V)
- 220
- With mounting material
- Yes
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminaire efficacy (max) (lm/W)
- 136
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No
- Height/depth (mm)
- 25
- Suitable for suspended mounting
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 83
- Voltage type
- AC
- Suitable for surface mounting
- Yes
- Connection type
- Screwless terminal
- Constant luminous flux control
- No
- Light source included
- Yes
- Width (mm)
- 596
- Power factor
- 0.9
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- IFTTT support available
- No
- Housing surface protection
- Powder coating
- Beam angle adjustable
- No
- Suitable for wall mounting
- No
- Dimmable
- No
- Dimming DSI
- No
- With switch
- No
- With light sensor
- No
- Colour temperature (min) (K)
- 4000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Degree of protection (IP), front side
- IP20
- Light sharing
- Symmetric
- Colour temperature switchable
- No
- Dimming with push-button
- No
- Cover material
- Plastic, transparent
- Luminaire efficacy (min) (lm/W)
- 136
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- No dimming function
- Yes
- Suitable for number of lamps
- 1
- Dimming leading edge
- No
- Type of grid
- High-gloss
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Connectable conductor cross section (min) (mm²)
- 1.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for ceiling mounting
- Yes
- Built-in length (mm)
- 600
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3000
- Unified Glare Rating (UGR)
- 19
- Effective luminous flux (lm)
- 3000
- Colour of light (alphanumeric)
- White
- Number of poles
- 5
- Max. number of luminaires per miniature circuit breaker B16
- 80
- Colour consistency (McAdam ellipse)
- SDCM3
- Suitable for clamp-mounting
- No
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Suitable for recessed mounting
- Yes
- Dimming potentiometer (integrated)
- No
- Bluetooth operated
- No
- Light distributor
- Focal lens
- Rated life time L80/B50 at 25 °C
- 80000
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Total harmonic distortion (THD) (%)
- 10
- Built-in width (mm)
- 600
- Beam angle
- Wide beam 40-80°
- Exchangeable control gear
- Yes
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 136
- Nominal current (min) (mA)
- 500
- Length (mm)
- 596
- Compatible with Casambi
- No
- Luminaire may be covered with thermally insulating material
- No
- Max. number of luminaires per miniature circuit breaker C16
- 136
- Dimming trailing edge
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Suitable for through wiring
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Total harmonic distortion
- 10
- Nominal current (max) (mA)
- 500
- With air slots
- No
- Colour temperature (max) (K)
- 4000
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Light outlet
- Direct
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP20
- Suitable for lamp power (min) (W)
- 22
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for emergency lighting
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Housing material
- Steel
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- No
- With movement sensor
- No
- Suitable for lamp power (max) (W)
- 22
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Conductor cross section (mm²)
- 2.5
- Maximum system power (W)
- 22
- Suitable for light line configuration
- No
- Dimming DALI
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Degree of protection (IP)
- IP20
- With presence indicator
- No
