Compact XL 150 IP54 14W 3CCT WH
Compact XL Downlight 8W-14W 3000/3500/4000K 1150-1800lm Beam angle Medium beam 20-40°; No dim; IP54; IK03; Protection cl. II; L70B50 100000h; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing al; Colour wh; Cover Plastic, transparent; C16 max. 45

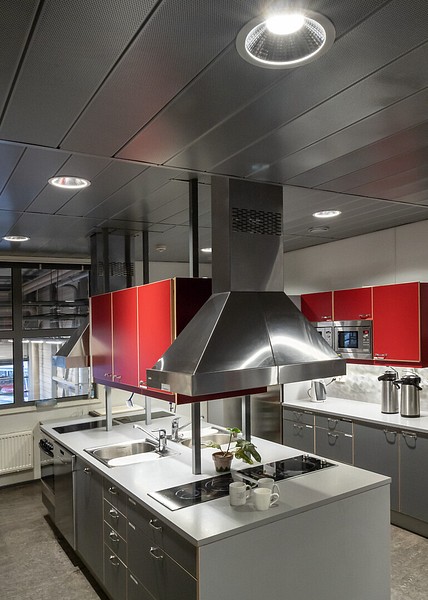

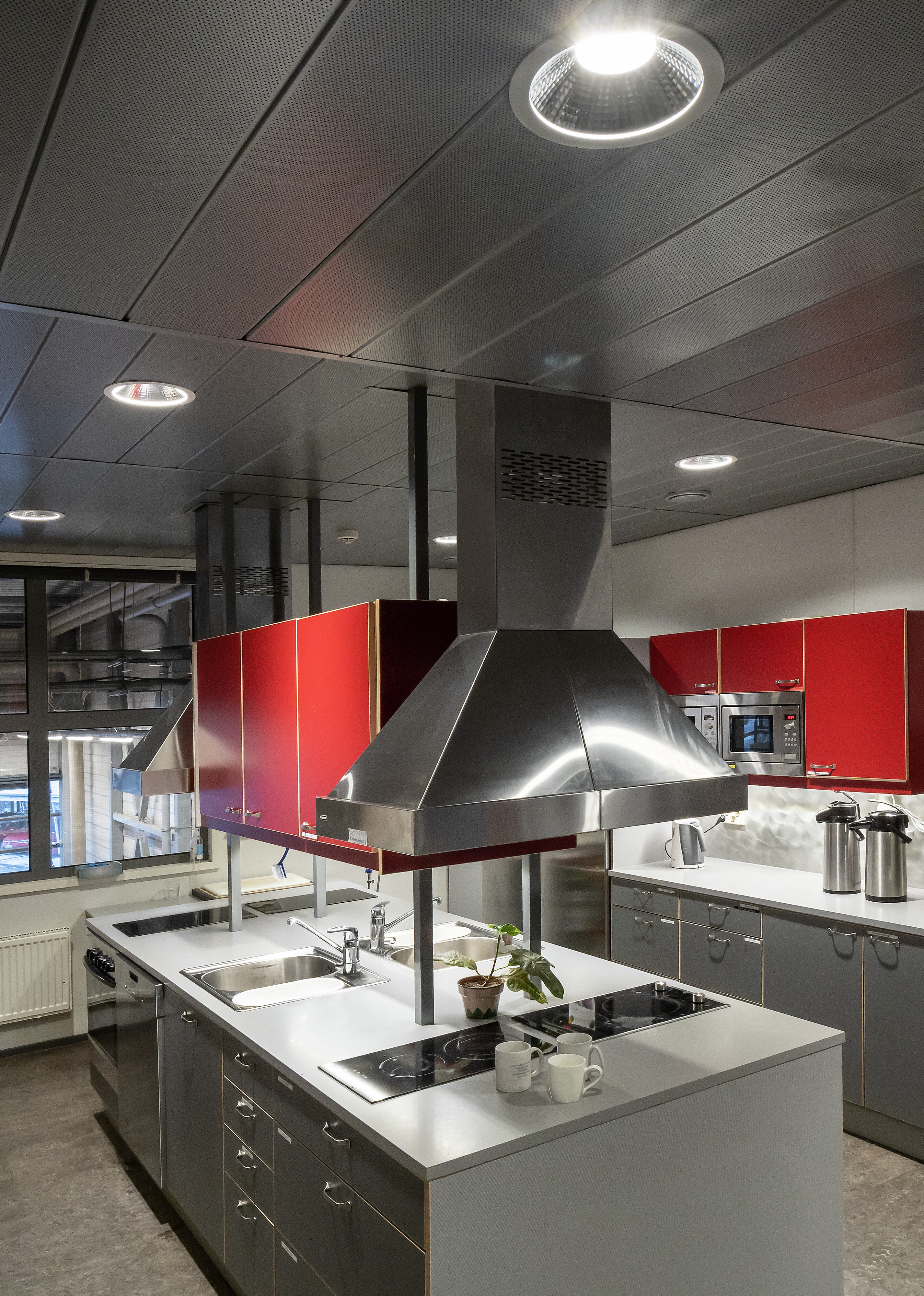

Compact XL is a versatile and high-quality downlight series that creates bright and evenly distributed light. The series is designed for public spaces, such as lobby areas and corridors, and especially for offices and educational institutions. The luminaires are designed to cause as little glare as possible, and their UGR value is less than 19. The luminaire is also suitable for renovation projects. The series offers four different sizes of luminaires, including a PIR model. The power and color temperature can be selected from several options. With three housing-colour options, you can select the models that best suit your needs. Also all RAL Classic colours for the housing are available to order. The luminaires are very energy-efficient and long-lasting, and they have a good lm/w ratio. Adaptor rings available as an accessory.
Aluminium housing and diffuser, plastic lenses.
White RAL 9016, black RAL 9005, grey RAL 7037.
Protection class II.
Recessed mounting in the ceiling.
Linkable: on/off and Casambi 3 x 1,5/2,5 mm2, Pir 4 x 1,5/2,5 mm2 and Dali 5 x 2,5 mm2.
Installation height 2–5 m.
Fixed LED, wattage and lumen are selectable from the luminaire:
150 mm: 8 W 1150 lm, 10 W 1400 lm, 12 W 1700 lm, 14 W 1800 lm.
170 mm: 18 W 2700 lm, 20 W 3000 lm, 22 W 3300 lm, 24 W 3350 lm.
210 mm: 18 W 2650 lm, 20 W 2950 lm, 22 W 3200 lm, 24 W 3250 lm.
170 mm Pir: 6 W 1050 lm, 8 W 1100 lm, 10 W 1350 lm, 11 W 1500 lm, 12 W 1650 lm.
Colour temperatures: 3000 K, 3500 K and 4000 K, selectable from the luminaire. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20/IP54.
IK03.
On/off, Dali and Casambi.
Pir models work on a passive infrared sensor principle and are suitable for master/slave (M/S) installation, enabling the use of up to 3 slave luminaires.
Ambient temperature range 0 … 25 °C.
Rated lifetime L80 100 000 h (Ta25°C).
Power source service life 50 000 h.
Power source service life in DA- and CA-models 100 000 h.
- Code
- 4146960
Downloads
Technical info
- Electrical number (FIN)
- 4146960
- Electrical number (SWE)
- 7477454
- GTIN
- 6435200306999
- Airam code
- A1EMB1
- Code
- 4146960
- Nominal voltage (min) (V)
- 220
- Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
- 80
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminaire efficacy (max) (lm/W)
- 150
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No
- Height/depth (mm)
- 58
- Adjustability
- Not adjustable
- Suitable for suspended mounting
- No
- Voltage type
- AC
- Suitable for pedestal/floor mounting
- No
- Stroboscope effect value SVM
- 0.4
- Suitable for surface mounting
- No
- Connection type
- Crimping
- Constant luminous flux control
- No
- Light source included
- Yes
- Suitable for light-track mounting
- No
- Width (mm)
- 170
- Power factor
- 0.9
- IFTTT support available
- No
- Beam angle adjustable
- No
- Outer diameter (mm)
- 170
- Suitable for wall mounting
- No
- Dimmable
- No
- Dimming DSI
- No
- Built-in height/depth (mm)
- 150
- With light sensor
- No
- Colour temperature (min) (K)
- 3000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Degree of protection (IP), front side
- IP54
- Light sharing
- Symmetric
- Colour temperature switchable
- Discrete positions
- Dimming with push-button
- No
- Cover material
- Plastic, transparent
- Luminaire efficacy (min) (lm/W)
- 150
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- No dimming function
- Yes
- Suitable for number of lamps
- 1
- Dimming leading edge
- No
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Connectable conductor cross section (min) (mm²)
- 1.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Recess diameter (max) (mm)
- 150
- Suitable for ceiling mounting
- Yes
- Built-in length (mm)
- 56
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 1800
- Unified Glare Rating (UGR)
- 19
- Effective luminous flux (lm)
- 1800
- Colour of light (alphanumeric)
- White
- Number of poles
- 3
- Installation height (max) (mm)
- 5000
- Luminous flux (min) (lm)
- 1150
- Max. number of luminaires per miniature circuit breaker B16
- 27
- Colour consistency (McAdam ellipse)
- SDCM3
- Suitable for clamp-mounting
- No
- Impact strength
- IK03
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 1150
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Suitable for recessed mounting
- Yes
- Dimming potentiometer (integrated)
- No
- Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
- 10
- Bluetooth operated
- No
- Light distributor
- Reflector
- Rated life time L80/B50 at 25 °C
- 75000
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Total harmonic distortion (THD) (%)
- 10
- Built-in width (mm)
- 150
- Beam angle
- Medium beam 20-40°
- Exchangeable control gear
- Yes
- Reflector colour
- Silver
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 150
- Nominal current (min) (mA)
- 200
- Reflector
- High-gloss
- Length (mm)
- 170
- Compatible with Casambi
- No
- Luminaire may be covered with thermally insulating material
- No
- Max. number of luminaires per miniature circuit breaker C16
- 45
- Dimming trailing edge
- No
- Photobiological safety according to EN 62471
- RG0
- Installation height (min) (mm)
- 2000
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Suitable for through wiring
- Luminous flux (max) (lm)
- 1800
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Total harmonic distortion
- 10
- Nominal current (max) (mA)
- 350
- Flickering value Pst LM
- 1
- Colour temperature (max) (K)
- 4000
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Light outlet
- Direct
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP20
- Suitable for lamp power (min) (W)
- 8
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Surface brushed
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for traverse mounting
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Housing material
- Aluminium
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- Positions
- With movement sensor
- No
- Suitable for lamp power (max) (W)
- 14
- Surface protection
- Powder coating
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Conductor cross section (mm²)
- 2.5
- Maximum system power (W)
- 14
- Dimming DALI
- No
- Recess diameter (min) (mm)
- 140
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Suitable for low voltage cable system
- No
- Degree of protection (IP)
- IP54
- With presence indicator
- No
