Vario 1420 31W/840 DO80 WH/WH
Vario Surface mnt./suspen. luminaire 31W 4000K 5800lm No dim; IP20; IK02; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Ending; 3x0.75mm²; Housing al; Colour wh; Cover Other; C16 max. 64

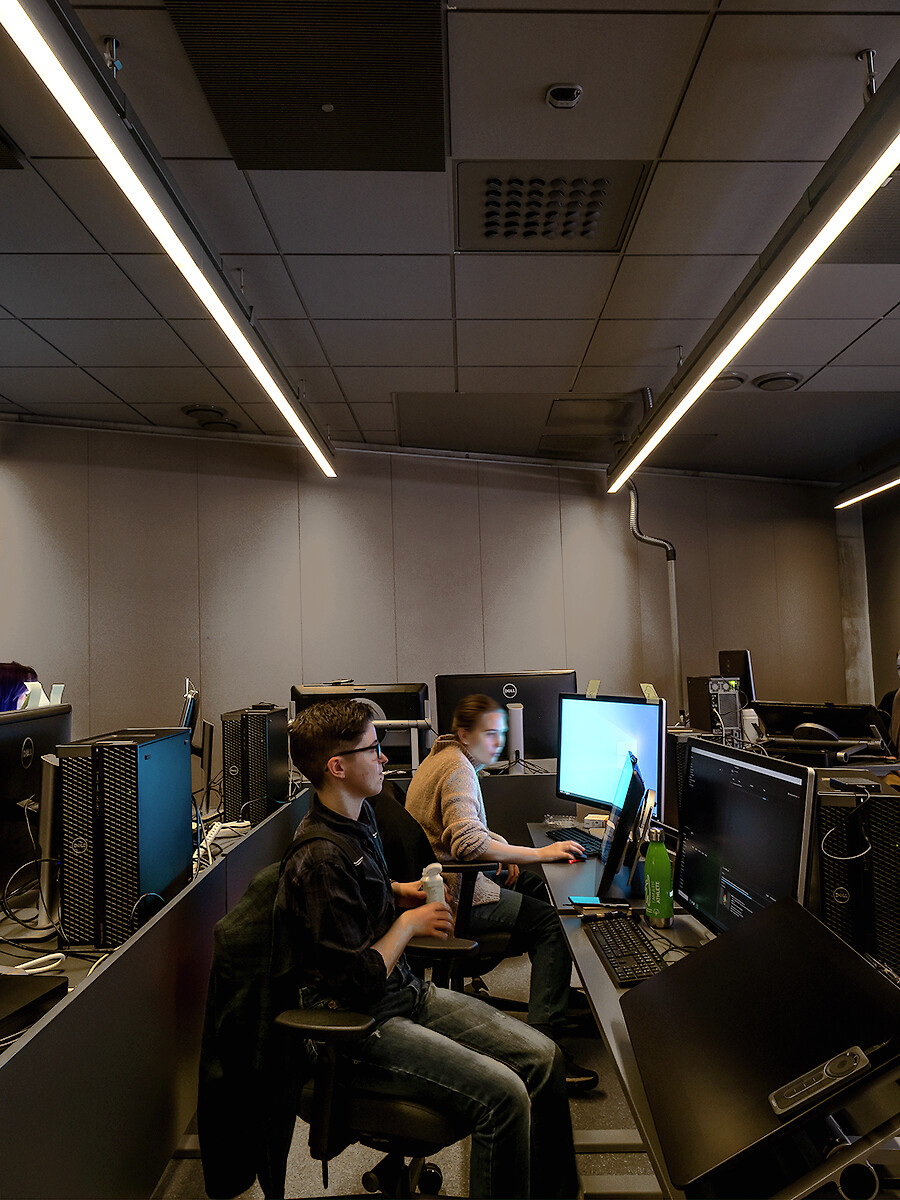

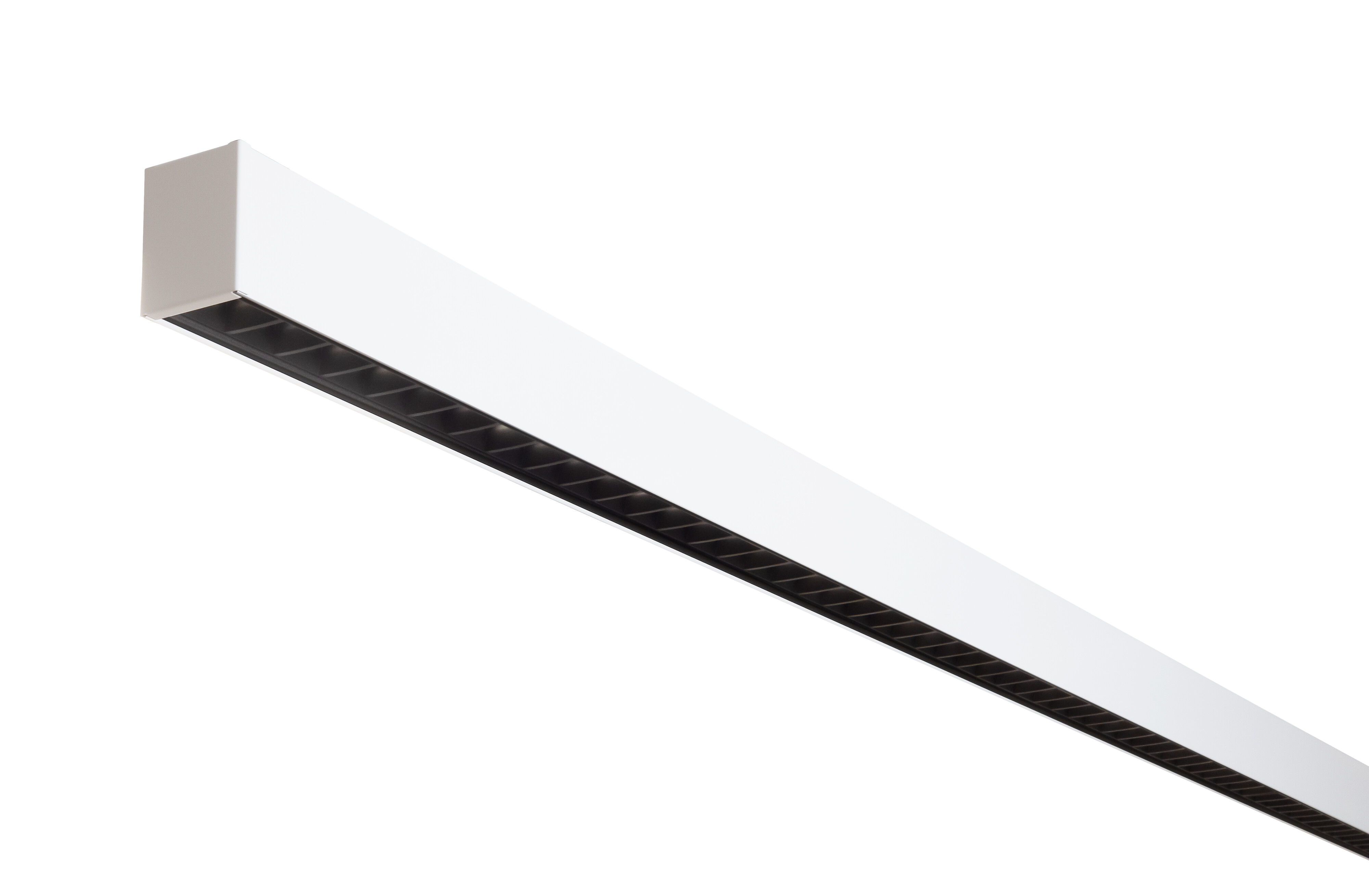

Developed and manufactured in Finland, Vario is a surface-mounted aluminium profile luminaire. The material used in the body is 100% recycled aluminum. Thanks to the variety of housing lengths and a wide range of corner pieces, you can create a customised lighting solution that meets your needs. Typical applications include offices, lobbies, educational institutions and corridors. With this luminaire, you can create a seamless line of light of up to 4500 mm. The DO series models are an excellent choice for all types of spaces where low glare levels and precisely controlled light distribution are required. The DO models are designed with user comfort in mind, ensuring that light is distributed evenly and discreetly onto the illuminated area. The 100% Finnish Vario luminaires are designed and manufactured at Airam’s factory in Lahti.
Aluminium housing and acrylic diffuser; microprism (ACMP), opal (ACO) or deep optic (DO).
White, RAL 9016.
Protection class I.
Surface mounting on the ceiling. Connection in a separate box. The luminaire will be delivered with a two-meter connection cable (3/5 x 0,75 mm2).
Mikroprisma:
1140 mm: 24 W / 3100 lm.
1420 mm: 30 W / 3900 lm.
4500 mm: 92 W / 12 500 lm.
Opal:
1140 mm: 24 W / 3100 lm.
1420 mm: 30 W / 3900 lm.
4500 mm: 92 W / 12 500 lm.
Deep optic:
1140 mm / 25 W: WH/WH / 4600 lm. WH/BK 4000 lm.
1420 mm / 31 W: WH/WH / 5800 lm. WH/BK 5000 lm.
Colour temperature 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK02.
On/off and Dali-2 models, with push-button control (230V).
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 > 100 000 h (Ta25°C).
Rated lifetime L80 100 000 h (Ta25°C).
Power source service life 100,000 h.
DO = Deep Optic, WH/WH = white housing + white diffuser, WH/BK = white housing + black diffuser, 80D = 80 degree lences.
EPD document is available for product 4146889 in the product range.
Casambi and ActiveAhead models are available on a project-specific basis. You can also have a luminous flux package customised to your needs.Through-wiring, customised input locations, cut-to-measure cables with quick connectors and various quick-connector cable sets are available by special order. The colour temperature options available are 3000 K and Tunable White. CRI > 90 / Ra > 90 also available. RAL Classic colours for the housing are available to order. Different linear light solutions are available. Various lengths ranging from 600 mm to 4500 mm are also available by order.
- Code
- 4146996
Downloads
Technical info
- Electrical number (FIN)
- 4146996
- GTIN
- 6435200315588
- Airam code
- A1VADC
- Code
- 4146996
- Nominal voltage (min) (V)
- 220
- With mounting material
- Yes
- Connectable conductor cross section (max) (mm²)
- 0.75
- Luminaire efficacy (max) (lm/W)
- 197
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No
- Height/depth (mm)
- 80
- Suitable for suspended mounting
- Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 40
- Voltage type
- AC
- Stroboscope effect value SVM
- 0.4
- Suitable for surface mounting
- Yes
- Connection type
- Other
- Constant luminous flux control
- No
- Light source included
- Yes
- Width (mm)
- 60
- Power factor
- 0.9
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- IFTTT support available
- No
- Housing surface protection
- Powder coating
- Beam angle adjustable
- No
- Suitable for wall mounting
- No
- Dimmable
- No
- Dimming DSI
- No
- With switch
- No
- With light sensor
- No
- Colour temperature (min) (K)
- 4000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Degree of protection (IP), front side
- IP20
- Light sharing
- Symmetric
- Colour temperature switchable
- No
- Dimming with push-button
- No
- Cover material
- Other
- Luminaire efficacy (min) (lm/W)
- 197
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- No dimming function
- Yes
- Suitable for number of lamps
- 1
- Dimming leading edge
- No
- Type of grid
- Matt
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Connectable conductor cross section (min) (mm²)
- 0.75
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for ceiling mounting
- Yes
- Length of power cord (mm)
- 2000
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 5800
- Unified Glare Rating (UGR)
- 15
- Effective luminous flux (lm)
- 5800
- Colour of light (alphanumeric)
- White
- Number of poles
- 3
- Max. number of luminaires per miniature circuit breaker B16
- 38
- Colour consistency (McAdam ellipse)
- SDCM3
- Suitable for clamp-mounting
- Yes
- Impact strength
- IK02
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 5800
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Suitable for recessed mounting
- No
- Dimming potentiometer (integrated)
- No
- Bluetooth operated
- No
- Light distributor
- Diffuser lens/optic/panel
- Rated life time L80/B50 at 25 °C
- 100000
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Total harmonic distortion (THD) (%)
- 15
- Beam angle
- Wide beam 40-80°
- Exchangeable control gear
- Yes
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 197
- Nominal current (min) (mA)
- 150
- Length (mm)
- 1420
- Compatible with Casambi
- No
- Luminaire may be covered with thermally insulating material
- -
- Max. number of luminaires per miniature circuit breaker C16
- 64
- Dimming trailing edge
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Ending
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Total harmonic distortion
- 15
- Nominal current (max) (mA)
- 150
- With air slots
- No
- Flickering value Pst LM
- 1
- Colour temperature (max) (K)
- 4000
- Light outlet
- Direct
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP20
- Suitable for lamp power (min) (W)
- 31
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for emergency lighting
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Housing material
- Aluminium
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- No
- With movement sensor
- No
- Suitable for lamp power (max) (W)
- 31
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Conductor cross section (mm²)
- 0.75
- Maximum system power (W)
- 31
- Suitable for light line configuration
- No
- Dimming DALI
- No
- With connection cord and plug
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- B
- Degree of protection (IP)
- IP20
- With presence indicator
- No
Product versions
| Item description | Code | |
|---|---|---|
| Vario 1140 25W/840 DO80 WH/WH | 4146994 |
|
| Vario 1140 25W/840 DO80 WH/BK | 4146995 |
|
| Vario 1420 31W/840 DO80 WH/WH | 4146996 |
|
| Vario 1420 31W/840 DO80 WH/BK | 4146997 |
|
| Vario 1140 24W/840 ACO WH | 4146879 |
|
| Vario 1420 30W/840 ACO WH | 4146880 |
|
| Vario 4500 92W/840 ACO WH | 4146881 |
|
| Vario 1140 24W/840 ACMP WH | 4146882 |
|
| Vario 1420 30W/840 ACMP WH | 4146883 |
|
| Vario 4500 92W/840 ACMP WH | 4146884 |
|
| Vario 1140 25W/840 DO80 DA2 WH/WH | 4146998 |
|
| Vario 1140 25W/840 DO80 DA2 WH/BK | 4146999 |
|
| Vario 1420 31W/840 DO80 DA2 WH/WH | 4147000 |
|
| Vario 1420 31W/840 DO80 DA2 WH/BK | 4147001 |
|
| Vario 1140 24W/840 ACO DA2 WH | 4146885 |
|
| Vario 1420 30W/840 ACO DA2 WH | 4146886 |
|
| Vario 4500 92W/840 ACO DA2 WH | 4146887 |
|
| Vario 1140 24W/840 ACMP DA2 WH | 4146888 |
|
| Vario 1420 30W/840 ACMP DA2 WH | 4146889 |
|
| Vario 4500 92W/840 ACMP DA2 WH | 4146890 |
