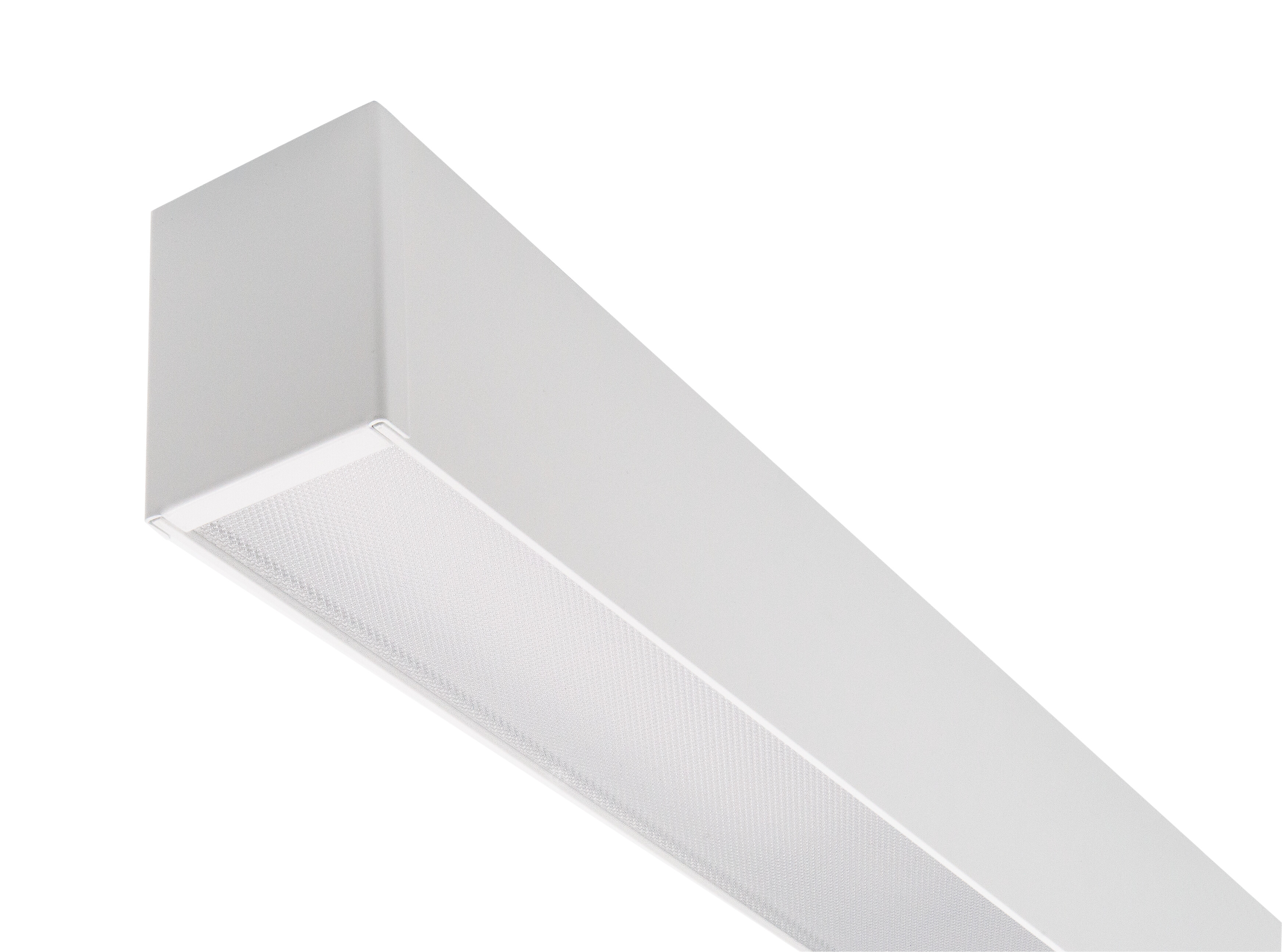

Vario 1420 30W/840 ACMP DA2 WH

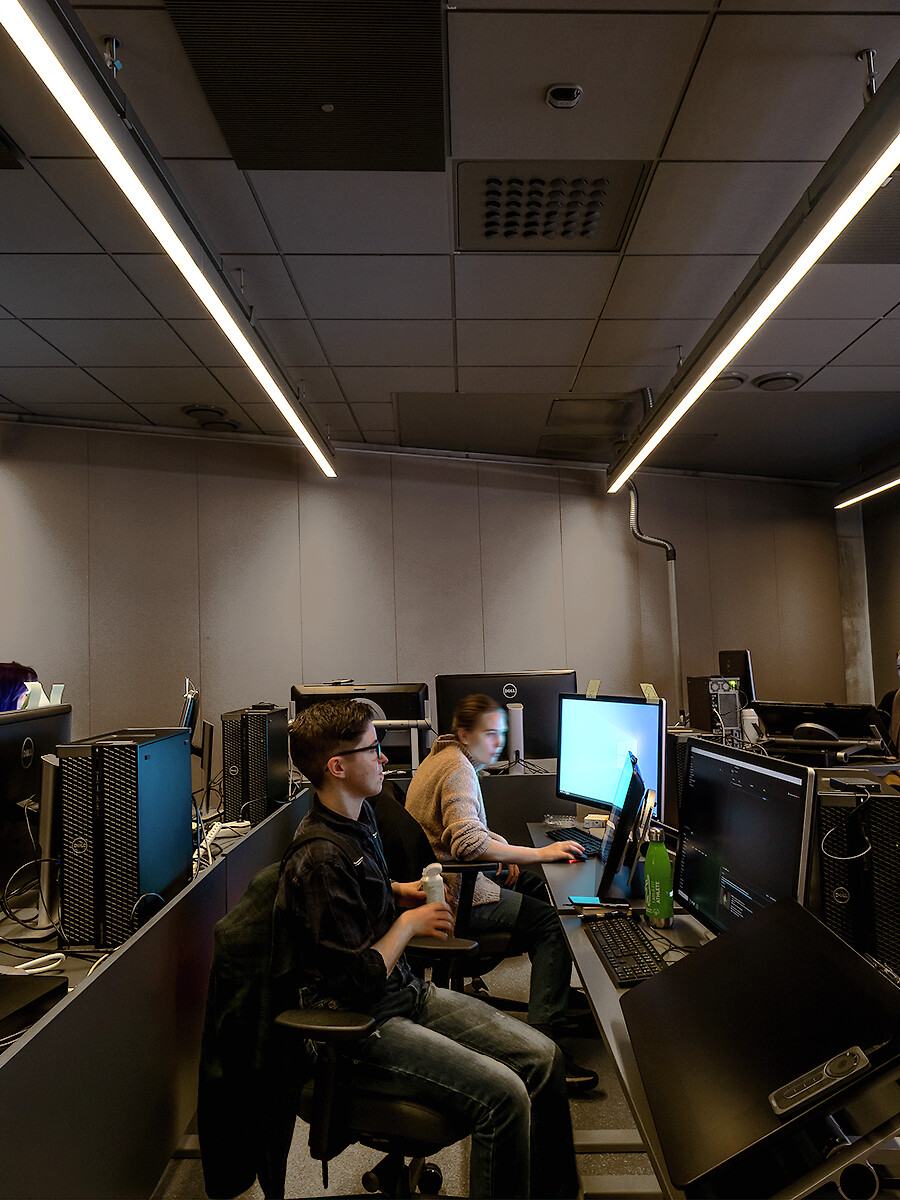

Developed and manufactured in Finland, Vario is a surface-mounted aluminium profile luminaire. The material used in the body is 100% recycled aluminum. Thanks to the variety of housing lengths and a wide range of corner pieces, you can create a customised lighting solution that meets your needs. Typical applications include offices, lobbies, educational institutions and corridors. With this luminaire, you can create a seamless line of light of up to 4500 mm. The DO series models are an excellent choice for all types of spaces where low glare levels and precisely controlled light distribution are required. The DO models are designed with user comfort in mind, ensuring that light is distributed evenly and discreetly onto the illuminated area. The 100% Finnish Vario luminaires are designed and manufactured at Airam’s factory in Lahti.

Aluminium housing and acrylic diffuser; microprism (ACMP), opal (ACO) or deep optic (DO).
White, RAL 9016.
Protection class I.

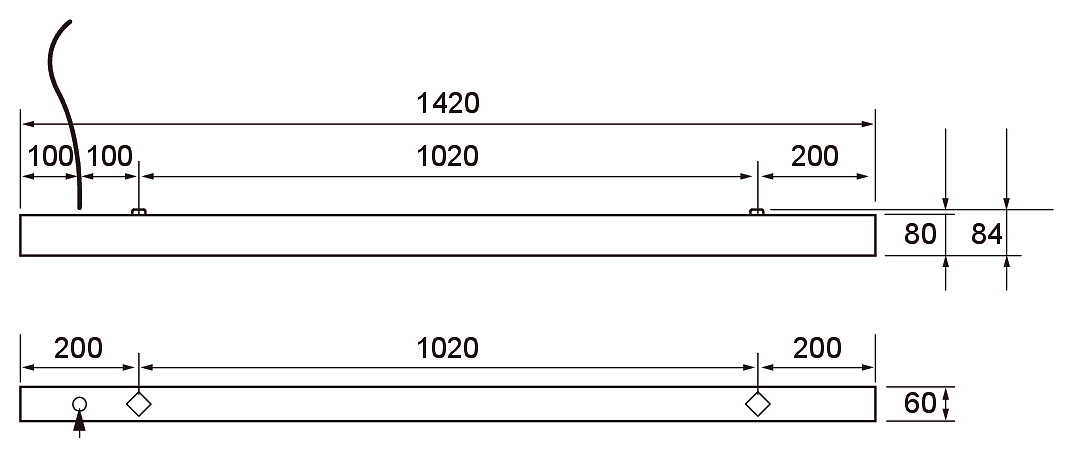

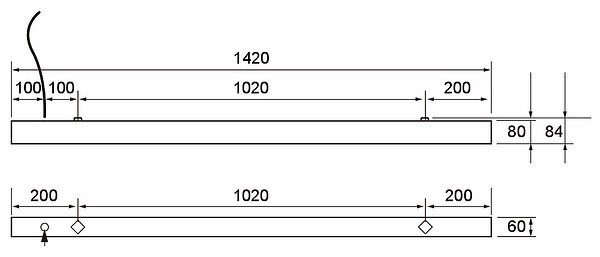

Surface mounting on the ceiling. Connection in a separate box. The luminaire will be delivered with a two-meter connection cable (3/5 x 0,75 mm2).
Mikroprisma:
1140 mm: 24 W / 3100 lm.
1420 mm: 30 W / 3900 lm.
4500 mm: 92 W / 12 500 lm.
Opal:
1140 mm: 24 W / 3100 lm.
1420 mm: 30 W / 3900 lm.
4500 mm: 92 W / 12 500 lm.
Deep optic:
1140 mm / 25 W: WH/WH / 4600 lm. WH/BK 4000 lm.
1420 mm / 31 W: WH/WH / 5800 lm. WH/BK 5000 lm.
Colour temperature 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK02.
On/off and Dali-2 models, with push-button control (230V).
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 > 100 000 h (Ta25°C).
Rated lifetime L80 100 000 h (Ta25°C).
Power source service life 100,000 h.
DO = Deep Optic, WH/WH = white housing + white diffuser, WH/BK = white housing + black diffuser, 80D = 80 degree lences.

EPD document is available for product 4146889 in the product range.

Casambi and ActiveAhead models are available on a project-specific basis. You can also have a luminous flux package customised to your needs.Through-wiring, customised input locations, cut-to-measure cables with quick connectors and various quick-connector cable sets are available by special order. The colour temperature options available are 3000 K and Tunable White. CRI > 90 / Ra > 90 also available. RAL Classic colours for the housing are available to order. Different linear light solutions are available. Various lengths ranging from 600 mm to 4500 mm are also available by order.
