Module 600X600 32W/840 DA2 PSMP
Module Modular luminaire 32W 4000K 4200lm Dali-2; IP54; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour wh; Cover Plastic, structured; C16 max. 53

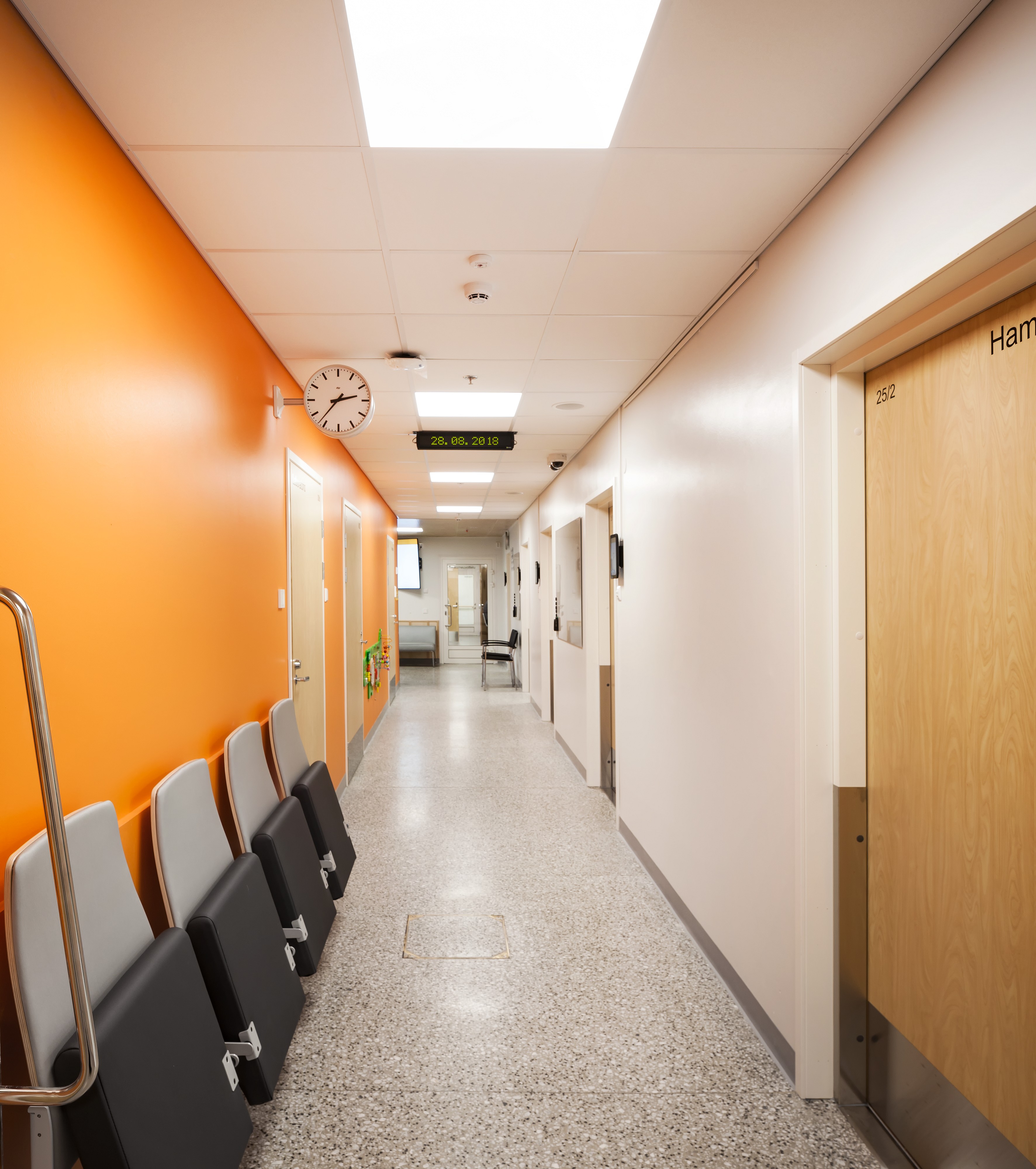

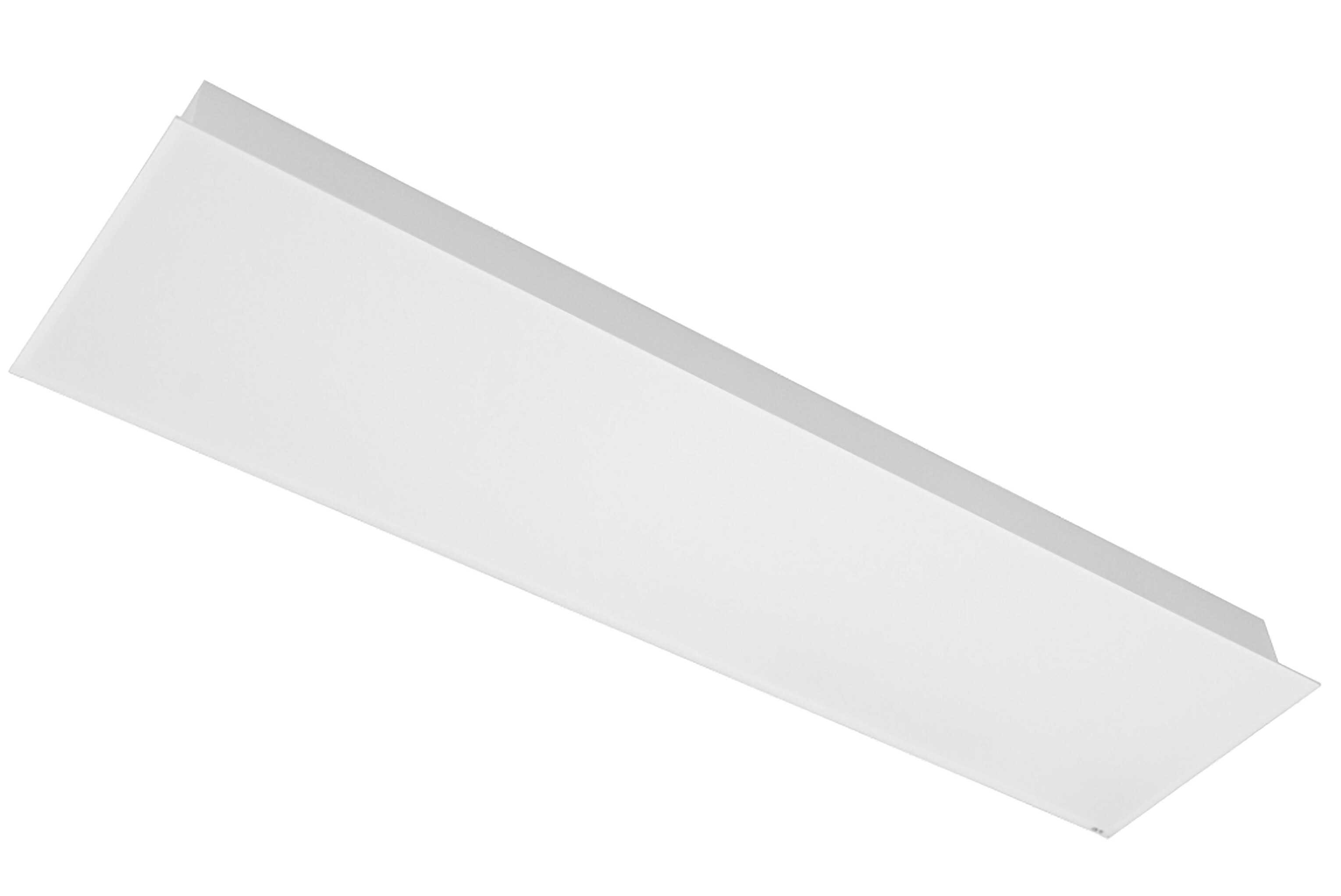

A modular luminaire designed for mounting on suspended ceilings in offices and other public spaces. Due to its excellent efficiency, the luminaire is a highly energy- and cost-efficient option. Available in two housing sizes. The bottom of the luminaire has the IP54 protection rating. Available with an opal or a micro-prismatic diffuser (UGR19) suitable for working with monitors Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. A recessed-mounting frame is available as an accessory.
Steel housing and opal or micro-prismatic polystyrene diffuser (PSO or PSMP).
White RAL 9016.
Protection class I.
Recessed mounting.
Linkable, 3/5 x 2.5 mm2
Installation height 2–4 m.
Fixed LED: 23–32 W / 2,900–4,200 lm.
Colour temperatures 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20/IP54.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source lifespan: 100 000 h.
A 600x600 general recessed mounting frame (4297811), 1,200x300 general recessed mounting frame (4297812) and a 600x600/143 mm surface mounting frame (4245223) are available as accessories.
WH = white, DA2 = Dali-2, PS = polystyrene, O = opal, MP = micro-prismatic
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available by special order. Also available with various connecting wire solutions. The colour temperature options available are: 2,700 K, 5,700 K and 6,500 K as well as Tunable White. In addition, 600x300 mm emergency light models are available via separate order.
- Code
- D2MADB-DALI
Downloads
Technical info
- Airam code
- D2MADB-DALI
- Code
- D2MADB-DALI
- Length (mm)
- 596
- Fit for workplace acc. EN 12464-1
- Yes
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 131
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 19
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 32
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4200
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Built-in width (mm)
- 600
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 15
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 4200
- Rated life time L80/B50 at 25 °C
- 80000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 32
- Width (mm)
- 596
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 131
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 32
- No dimming function
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 53
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 10
- Built-in height/depth (mm)
- 200
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Degree of protection (IP), front side
- IP54
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 4000
- Degree of protection (IP)
- IP54
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Power factor
- 0.9
- Beam angle
- Extreme wide beam >80°
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4200
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 32
- Dimming DALI
- No
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 131
- Voltage type
- AC
- Colour temperature switchable
- No
- Built-in length (mm)
- 600
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- Luminaire may be covered with thermally insulating material
- No
- Dimming trailing edge
- No
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 90
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- I
- Suitable for wall mounting
- No
- Dimming mains voltage modulation
- No
- Cover material
- Plastic, structured
- Max. number of luminaires per miniature circuit breaker B16
- 31
Product versions
Module opal 600 x 600
| Item description | Code | |
|---|---|---|
| Module 600X600 23W/830 PSO WH | 4297234 |
|
| Module 600X600 23W/840 PSO WH | 4297235 |
|
| Module 600X600 32W/830 PSO WH | 4297236 |
|
| Module 600X600 32W/840 PSO WH | 4297237 |
Module opal 1200 x 300
| Item description | Code | |
|---|---|---|
| Module 1200X300 23W/830 PSO WH | 4297242 |
|
| Module 1200X300 23W/840 PSO WH | 4297243 |
|
| Module 1200X300 32W/830 PSO WH | 4297244 |
|
| Module 1200X300 32W/840 PSO WH | 4297245 |
Module microprismatic 600 x 600
| Item description | Code | |
|---|---|---|
| Module 600X600 23W/830 PSMP WH | 4297238 |
|
| Module 600X600 23W/840 PSMP WH | 4297239 |
|
| Module 600X600 32W/830 PSMP WH | 4297240 |
|
| Module 600X600 32W/840 PSMP WH | 4297241 |
Module microprismatic 1200 x 300
| Item description | Code | |
|---|---|---|
| Module 1200X300 23W/830 PSMP WH | 4297246 |
|
| Module 1200X300 23W/840 PSMP WH | 4297247 |
|
| Module 1200X300 32W/830 PSMP WH | 4297248 |
|
| Module 1200X300 32W/840 PSMP WH | 4297249 |
Module Dali opal 600 x 600
| Item description | Code | |
|---|---|---|
| Module 600X600 23W/830 DA2 PSO | D2MAAA-DALI |
|
| Module 600X600 23W/840 DA2 PSO | D2MAAB-DALI |
|
| Module 600X600 32W/830 DA2 PSO | D2MABA-DALI |
|
| Module 600X600 32W/840 DA2 PSO | D2MABB-DALI |
Module Dali opal 1200 x 300
| Item description | Code | |
|---|---|---|
| Module 1200X300 23W/830 DA2 PSO | D2MCAA-DALI |
|
| Module 1200X300 23W/840 DA2 PSO | D2MCAB-DALI |
|
| Module 1200X300 32W/830 DA2 PSO | D2MCBA-DALI |
|
| Module 1200X300 32W/840 DA2 PSO | D2MCBB-DALI |
Module Dali microprismatic 600 x 600
| Item description | Code | |
|---|---|---|
| Module 600X600 23W/830 DA2 PSMP | D2MACA-DALI |
|
| Module 600X600 23W/840 DA2 PSMP | D2MACB-DALI |
|
| Module 600X600 32W/830 DA2 PSMP | D2MADA-DALI |
|
| Module 600X600 32W/840 DA2 PSMP | D2MADB-DALI |
Module Dali microprismatic 1200 x 300
| Item description | Code | |
|---|---|---|
| Module 1200X300 23W/830 DA2 PSMP | D2MCCA-DALI |
|
| Module 1200X300 23W/840 DA2 PSMP | D2MCCB-DALI |
|
| Module 1200X300 32W/830 DA2 PSMP | D2MCDA-DALI |
|
| Module 1200X300 32W/840 DA2 PSMP | D2MCDB-DALI |
