LID BIG 13W/840 BK
Lid Big Outdoors wall luminaire 13W 4000K 380lm No dim; IP65; IK10; Protection cl. I; L70B50 50000h; LED not exchangeable; CRI>80; Ending; 3x1.5mm²; Housing al; Colour bk; Cover Glass opal; C16 max. 84

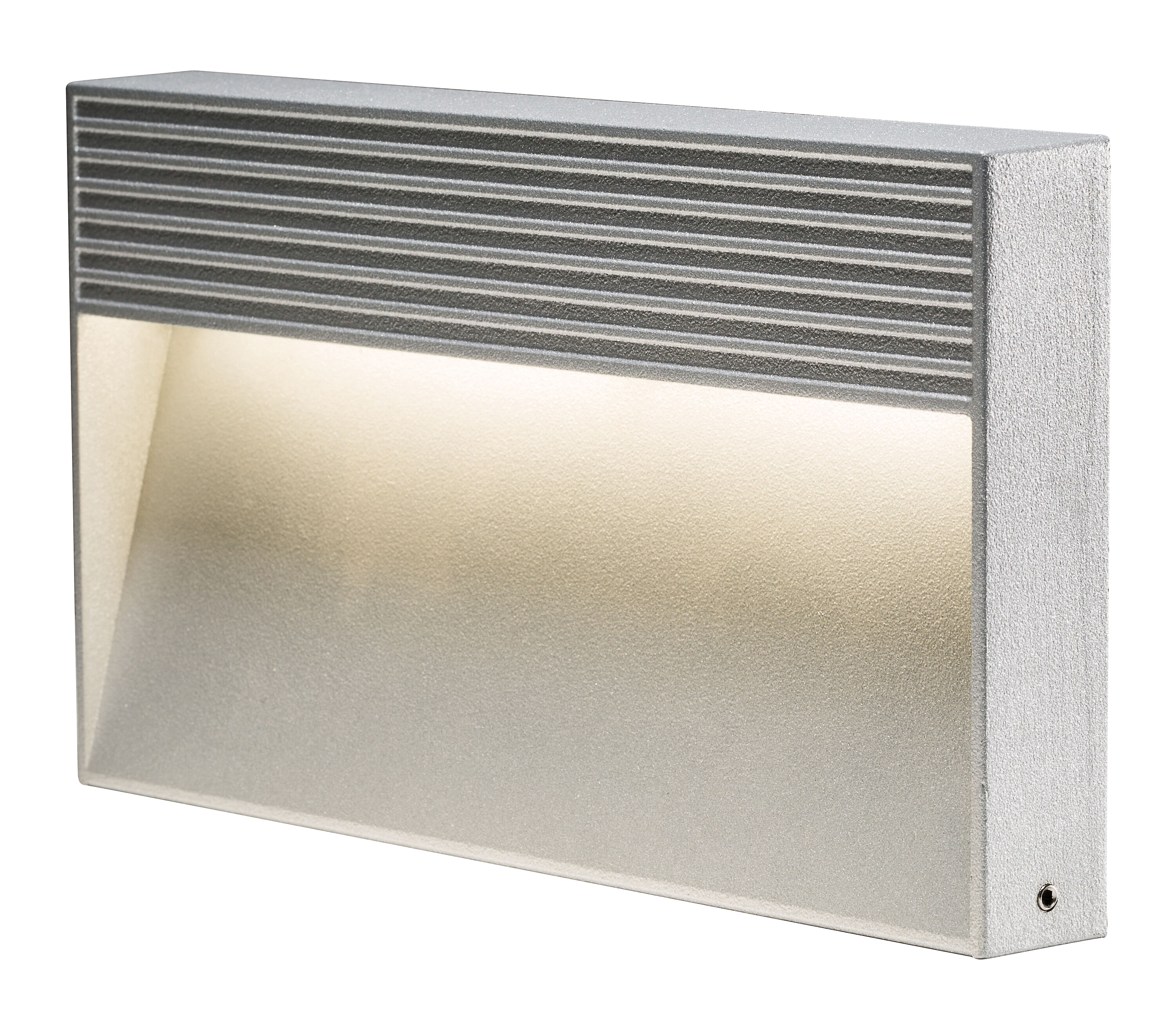

A wall-mounted, low-profile luminaire for indoor and outdoor use. Glass diffuser’s impact resistance: IK10. Thanks to its elegant design, the Lid luminaire offers an excellent lighting solution for modern spaces and loft apartments. The luminaire comes with an integrated LED, available in two colour temperatures. The luminaire housing is coated with polyester paint that is resistant to corrosion and UV radiation. The screws are made of stainless steel.
Aluminium housing and opal glass diffuser.
Anthracite, silver, black and white.
Protection class I.
Surface mounting.
Not linkable, 3 x 1.5 mm2.
Installation height 0–3 m.
Integrated LED 13 W, 360–380 lm.
Colour temperatures 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
IP65.
IK10.
On/off.
Ambient temperature range -25 … 35 °C
Rated lifetime L70 50,000 h (Ta25°C).
Power source service life 50,000 h.
AN = anthracite, SI = silver, BK = black, WH = white.
Also available in Corten colour on a project-specific basis.
- Code
- 4512357
Downloads
Technical info
- Electrical number (FIN)
- 4512357
- GTIN
- 6435200225382
- Airam code
- B5LDBG
- Code
- 4512357
- Length (mm)
- 133
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 29
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Number of poles
- 3
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 1.5
- Conductor cross section (mm²)
- 1.5
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 13
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- No
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 380
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- Black
- Emergency power supply integrated
- No
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 80
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -25
- Effective luminous flux (lm)
- 380
- Rated life time L80/B50 at 25 °C
- 35000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 58
- Width (mm)
- 235
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 29
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Ending
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 13
- No dimming function
- Yes
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwed terminal
- Light source included
- Yes
- Impact strength
- IK10
- Max. number of luminaires per miniature circuit breaker C16
- 84
- Lamp type
- LED not exchangeable
- Total harmonic distortion (THD) (%)
- 20
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Degree of protection (IP), front side
- IP65
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 4000
- Degree of protection (IP)
- IP65
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Power factor
- 0.9
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 380
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 13
- Dimming DALI
- No
- With light sensor
- No
- Luminaire efficacy (min) (lm/W)
- 29
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- Dimming trailing edge
- No
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 30
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 35
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- I
- Suitable for wall mounting
- Yes
- Dimming mains voltage modulation
- No
- Cover material
- Glass opal
- Max. number of luminaires per miniature circuit breaker B16
- 56
Product versions
Lid Big 830
| Item description | Code | |
|---|---|---|
| LID BIG 13W/830 AN | 4512350 |
|
| LID BIG 13W/830 SI | 4512351 |
|
| LID BIG 13W/830 BK | 4512352 |
|
| LID BIG 13W/830 WH | 4512353 |
Lid Big 840
| Item description | Code | |
|---|---|---|
| LID BIG 13W/840 AN | 4512355 |
|
| LID BIG 13W/840 SI | 4512356 |
|
| LID BIG 13W/840 BK | 4512357 |
|
| LID BIG 13W/840 WH | 4512358 |
