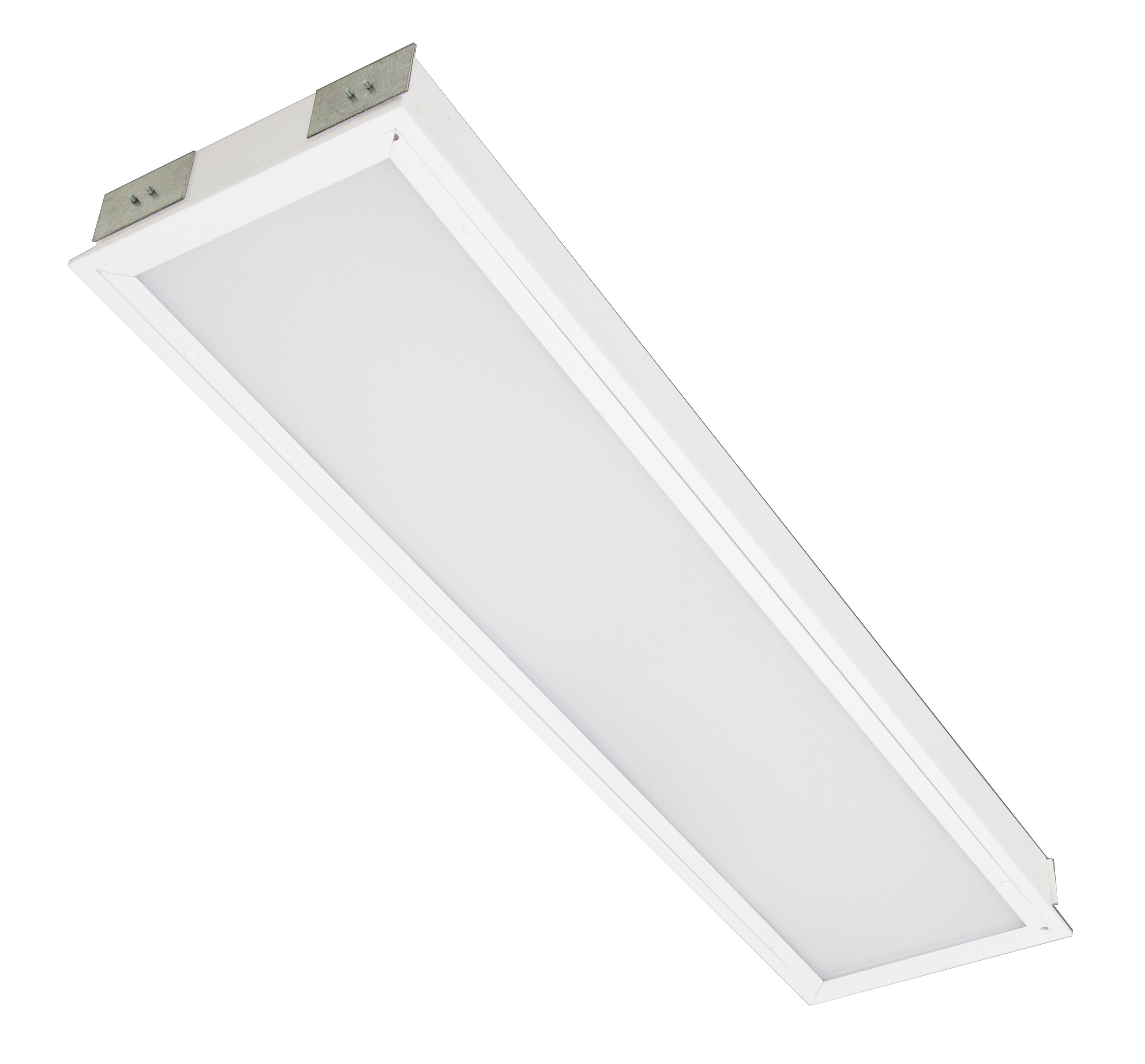

Clean

For hospitals and other premises where the luminaire must meet the clean space requirements (IP65). Available in two sizes, outputs and colour temperatures. The luminaire offers a high light output/W. Clean luminaires have been certified in accordance with the ISO 14644-1 standard and they have been granted the ISO 3 cleanroom classification.

Steel housing and opal acrylic diffuser.
White RAL 9003.
Protection class I.
Recessed mounting on a T-grid ceiling.
Linkable, 3/5 x 2.5 mm2
Installation height 2–4 m.
Fixed LED: 39–54 W / 4038–5568 lm.
Colour temperatures: 3000 K and 4000 K CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L80 100 000 h (Ta25°C).
Power source lifespan: 100 000 h. Tc < 65 °C.
WH = white, DA2 = Dali-2.

1–10V solutions and push-button controlled versions are available on a project-specific basis. Also available in sizes 300 x 600 mm, 300 x 1500 mm and 600 x 1200 mm. CRI > 90 available by special order. The colour temperature options available are: 2700 K, 5700 K and 6500 K as well as Tunable White. The luminaire is also available for order in grey RAL 9006. Available with various diffuser combinations: laminated safety glass, micro-prismatic (UGR < 19) and laser glass. Models also available for various mounting options, such as surface mounting, mounting on plasterboard and with concealed grid brackets.
