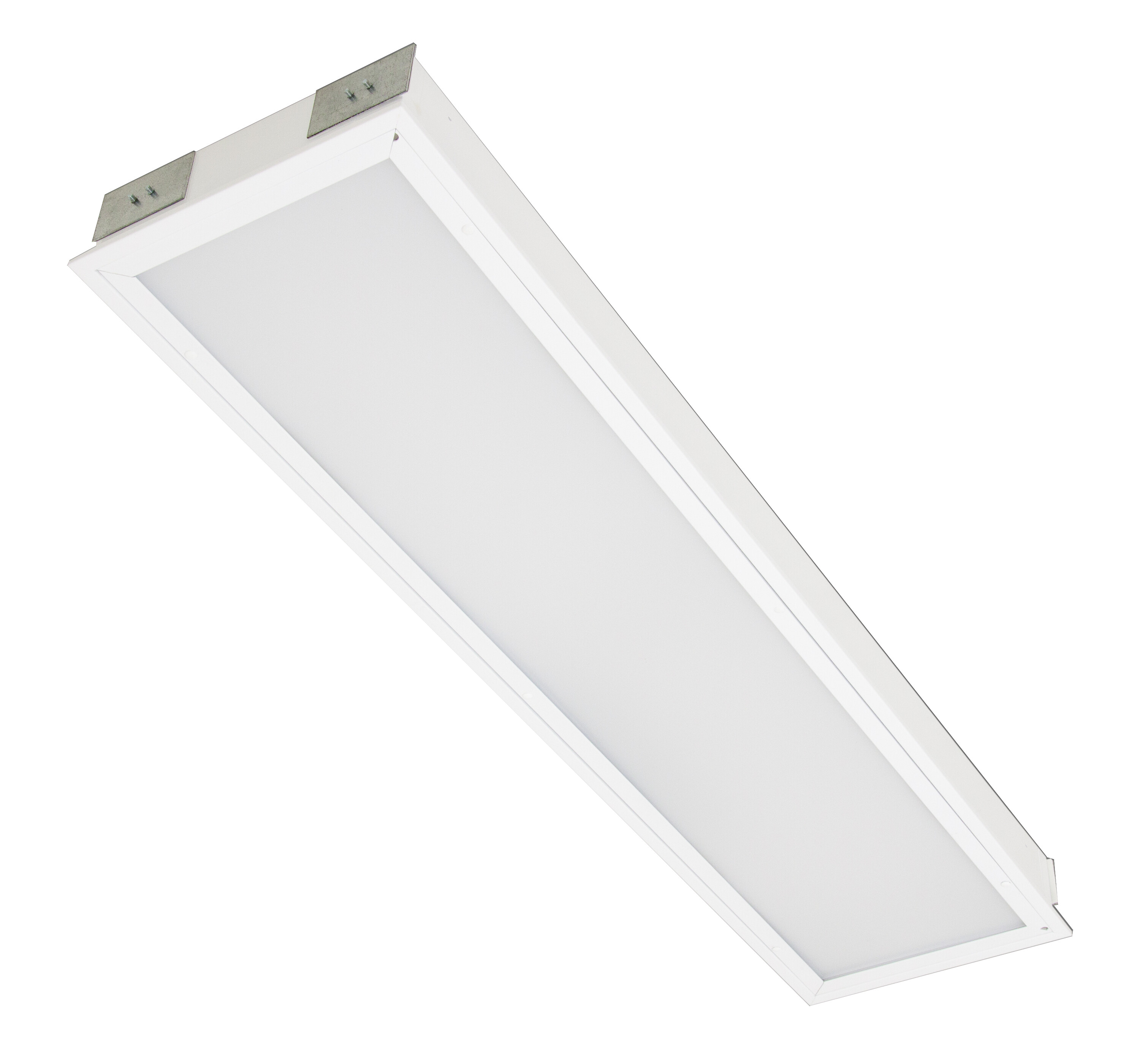

Clean 1200x300 IP65 39W/830 DA2 ACO
Clean Clean area luminaire 39W 3000K 4900lm IP65; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour wh; Cover Plastic, opal; C16 max. 31
For hospitals and other premises where the luminaire must meet the clean space requirements (IP65). Available in two sizes, outputs and colour temperatures. The luminaire offers a high light output/W. Clean luminaires have been certified in accordance with the ISO 14644-1 standard and they have been granted the ISO 3 cleanroom classification.
Steel housing and opal acrylic diffuser.
White RAL 9003.
Protection class I.
Recessed mounting on a T-grid ceiling.
Linkable, 3/5 x 2.5 mm2
Installation height 2–4 m.
Fixed LED: 39–54 W / 4038–5568 lm.
Colour temperatures: 3000 K and 4000 K CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L80 100 000 h (Ta25°C).
Power source lifespan: 100 000 h. Tc < 65 °C.
WH = white, DA2 = Dali-2.
1–10V solutions and push-button controlled versions are available on a project-specific basis. Also available in sizes 300 x 600 mm, 300 x 1500 mm and 600 x 1200 mm. CRI > 90 available by special order. The colour temperature options available are: 2700 K, 5700 K and 6500 K as well as Tunable White. The luminaire is also available for order in grey RAL 9006. Available with various diffuser combinations: laminated safety glass, micro-prismatic (UGR < 19) and laser glass. Models also available for various mounting options, such as surface mounting, mounting on plasterboard and with concealed grid brackets.
- Code
- 4207300
Downloads
Technical info
- Electrical number (FIN)
- 4207300
- Electrical number (SWE)
- 7015234
- GTIN
- 6435200226846
- Airam code
- E2CLCC
- Code
- 4207300
- Length (mm)
- 1195
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 126
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 39
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4900
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- Other
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Built-in width (mm)
- 300
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 4900
- Rated life time L80/B50 at 25 °C
- 100000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 21
- Width (mm)
- 295
- Suitable for surface mounting
- No
- Luminaire efficacy (lm/W)
- 126
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 39
- No dimming function
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 31
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 127
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Degree of protection (IP), front side
- IP65
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP65
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4900
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 39
- Dimming DALI
- No
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 126
- Voltage type
- AC
- Colour temperature switchable
- No
- Built-in length (mm)
- 1200
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- Luminaire may be covered with thermally insulating material
- No
- Dimming trailing edge
- No
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 90
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- I
- Suitable for wall mounting
- No
- Dimming mains voltage modulation
- No
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 21
Product versions
Clean 600 x 600
| Item description | Code | |
|---|---|---|
| Clean 600x600 IP65 39W/830 ACO | 4207220 |
|
| Clean 600x600 IP65 39W/840 ACO | 4207222 |
|
| Clean 600x600 IP65 54W/830 ACO | 4207225 |
|
| Clean 600x600 IP65 54W/840 ACO | 4207227 |
Clean 1200 x 300
| Item description | Code | |
|---|---|---|
| Clean 1200x300 IP65 39W/830 ACO | 4207292 |
|
| Clean 1200x300 IP65 39W/840 ACO | 4207294 |
|
| Clean 1200x300 IP65 54W/830 ACO | 4207302 |
|
| Clean 1200x300 IP65 54W/840 ACO | 4207303 |
Clean Dali 600 x 600
| Item description | Code | |
|---|---|---|
| Clean 600x600 IP65 39W/830 DA2 ACO | 4207223 |
|
| Clean 600x600 IP65 39W/840 DA2 ACO | 4207224 |
|
| Clean 600x600 IP65 54W/830 DA2 ACO | 4207228 |
|
| Clean 600x600 IP65 54W/840 DA2 ACO | 4207229 |
Clean Dali 1200 x 300
| Item description | Code | |
|---|---|---|
| Clean 1200x300 IP65 39W/830 DA2 ACO | 4207300 |
|
| Clean 1200x300 IP65 39W/840 DA2 ACO | 4207301 |
|
| Clean 1200x300 IP65 54W/830 DA2 ACO | 4207304 |
|
| Clean 1200x300 IP65 54W/840 DA2 ACO | 4207305 |
